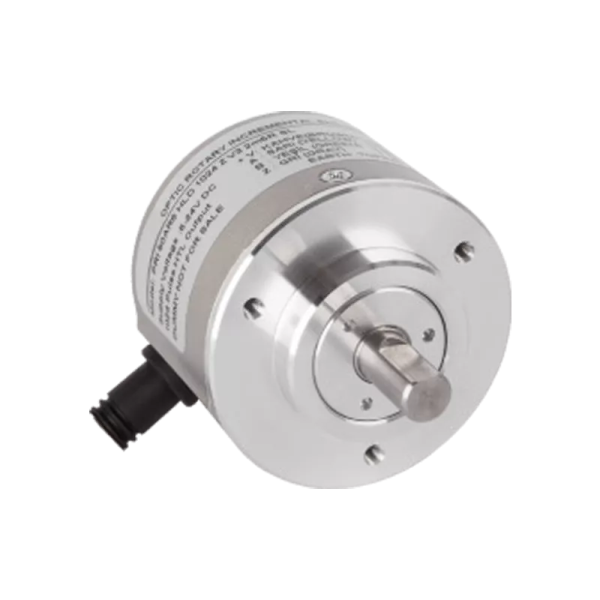

PRI50 Shaft Encoders-Low Cost 360 Pulses
SKU: PRI50-360
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An affordable option for accurate speed and position monitoring in a range of industrial applications is the Opkon PRI50 Shaft Encoder.
This incremental encoder provides dependable performance and versatility with a small case diameter of 50 mm.
It can be used in settings including printing machines, textile factories, packaging facilities, and induction motors.
Long-term operation and durability are guaranteed by the encoder's sturdy design, which includes a stainless-steel shaft and an aluminium and coated steel casing.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resolution: 360 pulses per revolution (ppr).
Output Channels: A, A’, B, B’, Z, Z’.
Output Type: High Line Driver (HLD).
Supply Voltage: 5V DC to 30V DC.
Power Consumption: < 40 mA (24 VDC).
Cable: 2.5m standard length, 8-wire + shield for Line Driver.
Max Permissible Shaft Loading:
Radial: 100N.
Axial: 60N.
Max Speed: 3500 rpm.
Shaft Diameter: Ø6 mm.
Shaft Material: Stainless steel.
Case Diameter: Ø50 mm.
Case Material: Aluminium and painted steel.
IP Rating: IP50.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
