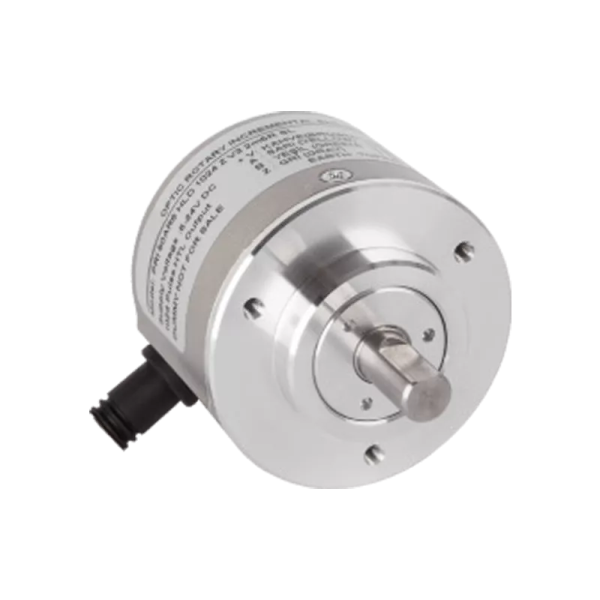

PRI50 Shaft Encoders-Low Cost 500 Pulses
SKU: PRI50-500
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An affordable, high-performing incremental rotary encoder made for a range of industrial uses is the Opkon PRI50 Shaft Encoder.
With a 50 mm case diameter and a small design, this encoder is appropriate for installations with limited space.
It offers 500 pulses per revolution (PPR) of resolution for accurate location and speed feedback.
Because of its sturdy construction, the PRI50 encoder is guaranteed to last in severe conditions.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Resolution: 500 pulses per revolution (PPR).
Output Type: High Line Driver (HLD).
Output Channels: A, A’, B, B’, Z, Z’.
Supply Voltage: 5-30V DC.
Case Diameter: 50 mm.
Shaft Diameter: 6 mm, 8 mm, 10 mm.
Maximum Speed: 3500 rpm.
Shaft Material: Stainless Steel.
Case Material: Aluminium and Painted Steel.
Protection Level: IP54.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
Cable: 2.5m standard length, 5-wire + shield for Push-Pull, 8-wire + shield for Line Driver.
Maximum Permissible Shaft Loading:
Radial: 100N.
Axial: 60N.
