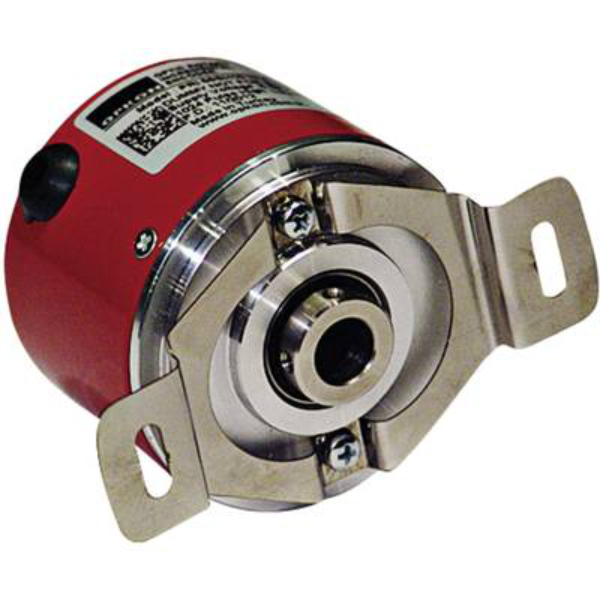

PRI50 SH Hollow Shaft Encoders-Low Cos 1000 Pulses
SKU: PRI50SH-1000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
An affordable, high-precision hollow shaft incremental encoder made for a range of industrial uses is the Opkon PRI50SH-1000.
This encoder is appropriate for settings with limited space because of its small 50 mm case diameter.
With a resolution of 1000 pulses per revolution (PPR), it offers precise location and speed feedback.
It is perfect for use in tough environments because of its sturdy structure, which guarantees dependability and endurance.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: PRI50SH-1000.
Resolution: 1000 pulses per revolution (PPR).
Output Channels: A, B, Z or A, A, B, B, Z, Z.
Output Type: Push-Pull, TTL Line Driver, HTL Line Driver.
Supply Voltage: 5V DC or 8-24V DC or 5-24V DC.
Power Consumption: < 40 mA (24 VDC) without load.
Cable:
Standard 2.5m, 5-wire + shield for Push-Pull.
Standard 2.5m, 8-wire + shield for Line Driver.
Max. Permissible Shaft Loading:
Radial: 100N.
Axial: 60N.
Max. Speed: 3500 rpm.
Shaft Diameter: 6 mm, 8 mm, 10 mm, 12 mm, 14 mm, 15 mm.
Shaft Material: Stainless Steel.
Case Diameter: 50 mm.
Case Material: Aluminium and Painted Steel.
IP Rating: IP54.
Operating Temperature: -20°C to +80°C.
Storage Temperature: -30°C to +90°C.
