Side Plinths, PS, 98x458x27mm, Zinc Plated, Mild Steel
SKU: PS1050
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

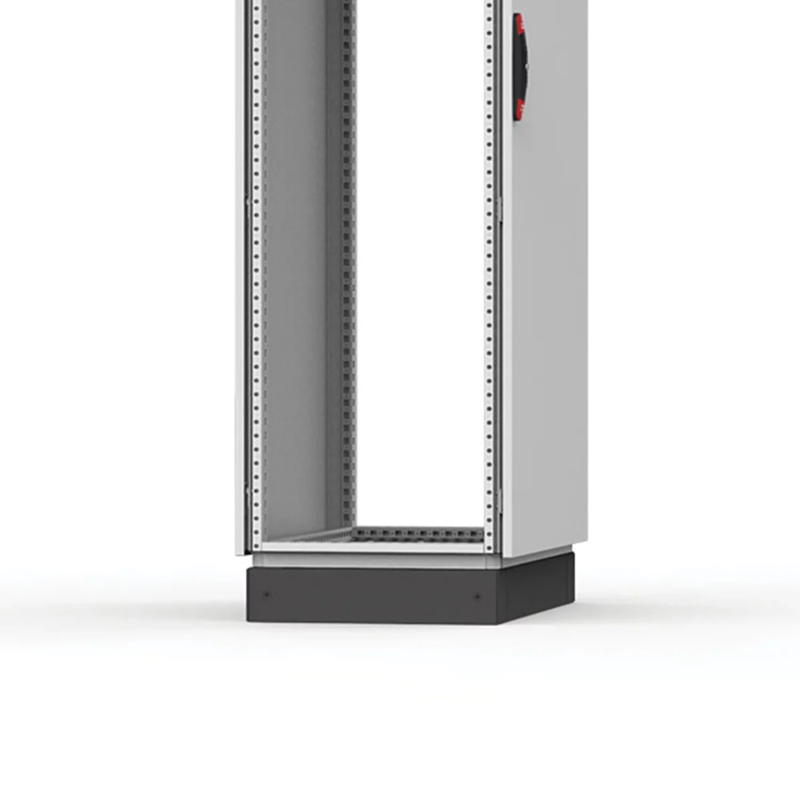

Vent Hoffman Side Plinths, PS1050, are intended to give electrical enclosures further support and defence.
The side plinths are made of mild steel and have a zinc-plated finish for long-lasting corrosion resistance.
The purpose of the plinths is to enclose the additional space they generate, limiting access and strengthening the enclosure's overall stiffness.
They are an adaptable addition to your setup since they work with semi-compact and combinable floor-standing enclosures.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Part Number: PS1050.
Material: Mild Steel.
Finish: Zinc Plated.
Colour: Unpainted.
Dimensions:
Height: 98 mm (3.86 in).
Width: 458 mm (18.03 in).
Depth: 27 mm (1.06 in).
Thickness: 1.5 mm (16 gauge).
Protection Ratings: Complies with VDE 0113 standard.
Package Quantity: 2 panels with mounting accessories.
Assembly: Tool-free assembly with snap-lines for side-to-side baying of combinable floor-standing enclosures.
Comments:
Must be mounted along with front/rear plinths PF.
For combined plinths, use plinth combining profiles PCP/PCPK for reinforcement.
Allows enclosures to be fixed to the floor without interior access.
These side plinths are ideal for ensuring the stability and proper alignment of your electrical enclosures while providing easy access for cable management.
