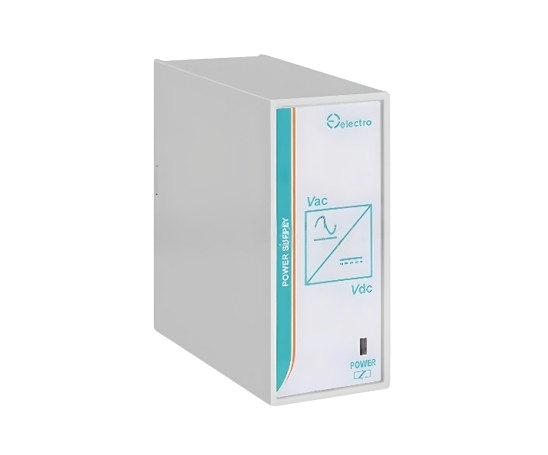

POWER SUPPLY UNIT 230VAC/24VDC
SKU: PSU
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Unit of Power Supply:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Safeguard against overload.
Protection against short circuits.
LED power supply ON.
Shutdown due to overheating.
Dependable supply with little ripple effect.
Gives an AC input source a controlled DC output.
Buy currently uses Select Automation shop pricing and checkout.
Overload/short circuit protection:
OUTPUT POWER: 2 VA
STANDARD OUTPUT VOLTAGE: 5, 9, 10, 24 VDC
RIPPLE VOLTAGE: < 2%.
OVERLOAD PROTECTION: Yes
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
