PT8000 Series Cable Voltage Divider 1000mm
SKU: PT8101-1000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:

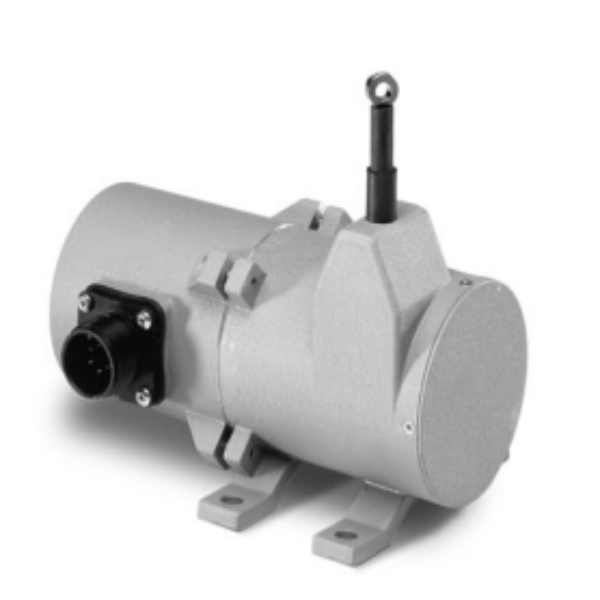

A robust, industrial-grade cable-actuated sensor for accurate linear position measurements is the Celesco PT8101-1000.
A high-cycle plastic-hybrid potentiometer is used in this PT8000 series type to provide dependable performance under challenging conditions.
Applications needing precise and consistent measurements across a whole stroke range of up to 1000mm (about 39.37 inches) are best suited for it.
All that is needed to install the PT8101-1000 is to mount its body to a stationary surface and connect its cable to the mobile object.
Because of its sturdy design, which guarantees lifespan and durability, it can be used in factories and other demanding environments.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Full Stroke Range: 0-1000mm (39.37 inches).
Output Signal: Voltage divider (potentiometer).
Accuracy: ±0.1% to ±1.0% full stroke.
Repeatability: ±0.02% full stroke.
Resolution: Essentially infinite.
Measuring Cable: Stainless steel or thermoplastic.
Enclosure Material: Powder-painted aluminium or stainless steel.
Sensor Type: Plastic-hybrid precision potentiometer.
Potentiometer Cycle Life: Refer to ordering information.
Maximum Retraction Acceleration: Refer to ordering information.
Weight:
Aluminium Enclosure: 3 lbs (1.36 kg).
Stainless Steel Enclosure: 6 lbs (2.72 kg).
Environmental Protection:
NEMA 4X/6.
IP68.
Operating Temperature: -40°F to 200°F (-40°C to 90°C).
Vibration Resistance: Up to 10 g to 2000 Hz maximum.
Electrical Specifications:
Input Resistance Options: 500Ω, 1kΩ, 5kΩ, 10kΩ, or bridge (refer to ordering information).
Power Rating: Refer to ordering information.
Recommended Maximum Input Voltage: Refer to ordering information.
Output Signal Change Over Full Stroke Range: 94% ±4% of input voltage.
