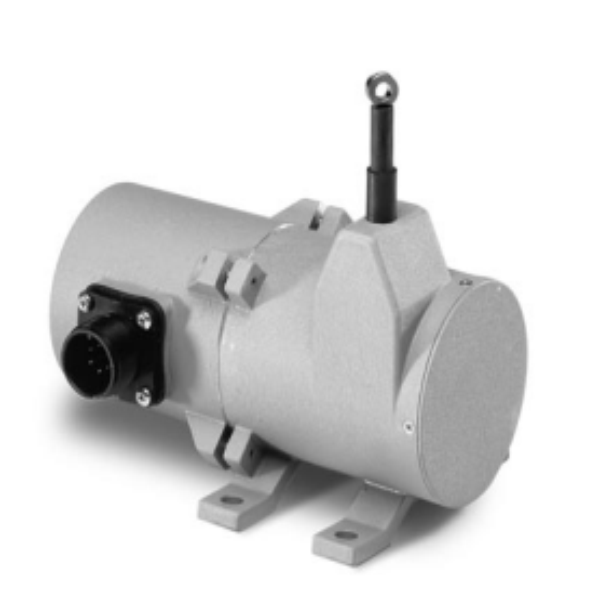

PT8000 Series Cable Voltage Divider 1500mm
SKU: PT8101-1500
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial use, the Celesco PT8000 Series Cable Voltage Divider PT8101-1500 is a reliable and accurate cable-extension position transducer.
It provides precise linear position readings by using a high cycle plastic-hybrid potentiometer.
This gadget is perfect for severe industrial situations and companies that demand dependable performance and endurance.
The PT8101-1500 is adaptable for a range of applications since it is simple to combine with programmable controllers or simple panel meters.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Full Stroke Range Options: 0-2 inches to 0-60 inches.
Output Signal: Voltage divider (potentiometer).
Accuracy: ±0.25% to ±0.10% full stroke.
Repeatability: ±0.02% full stroke.
Resolution: Essentially infinite.
Measuring Cable Options: Stainless steel or thermoplastic.
Enclosure Material: Powder-painted aluminium or stainless steel.
Sensor: Plastic-hybrid precision potentiometer.
Potentiometer Cycle Life: See ordering information.
Maximum Retraction Acceleration: See ordering information.
Weight: Aluminium enclosure - 3 lbs. max; Stainless steel enclosure - 6 lbs. max.
Input Resistance Options: 500, 1K, 5K, 10K ohms or bridge.
Power Rating: See ordering information.
Recommended Maximum Input Voltage: See ordering information.
Output Signal Change Over Full Stroke Range: 94% ±4% of input voltage.
Environmental Protection: NEMA 4/4X/6, IP67.
Operating Temperature: -40°F to 200°F (-40°C to 90°C).
Vibration Resistance: Up to 10 G’s to 2000 Hz maximum.
