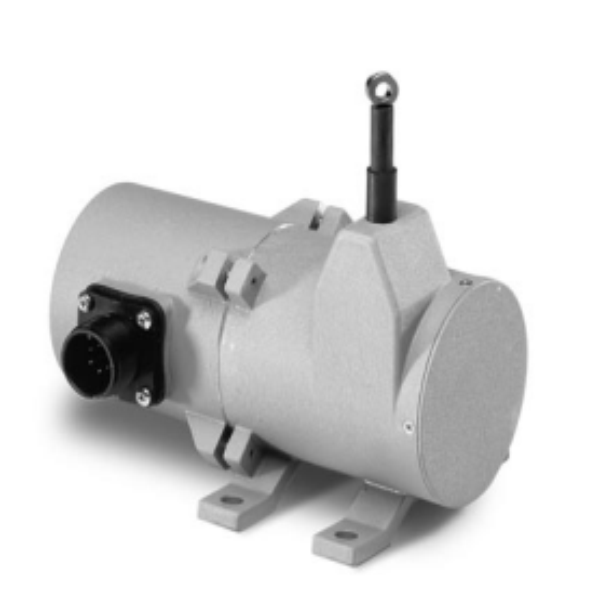

PT8000 Series Cable Voltage Divider 500mm
SKU: PT8101-500
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial use, the Celesco PT8000 Series Cable Voltage Divider—more especially, the PT8101-500—is a reliable and accurate cable-extension position transducer.
This device is perfect for use in factories and other demanding situations since it is designed to produce precise linear position measurements under challenging conditions.
Long-lasting performance and dependability are guaranteed by the high cycle plastic-hybrid potentiometer found in the PT8101-500.
Its small size makes it simple to install, even in confined areas, and it functions well without exact parallel alignment.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Full Stroke Range Options: 0-2 inches to 0-60 inches (1524 mm).
Output Signal Options: Voltage divider (potentiometer).
Accuracy: ±0.25% to ±0.10% full stroke.
Repeatability: ±0.02% full stroke.
Resolution: Essentially infinite.
Measuring Cable Options: Stainless steel or thermoplastic.
Enclosure Material: Powder-painted aluminium or stainless steel.
Sensor: Plastic-hybrid precision potentiometer.
Potentiometer Cycle Life: Refer to ordering information.
Maximum Retraction Acceleration: Refer to ordering information.
Weight: Aluminium enclosure - 3 lbs. (1.36 kg); Stainless steel enclosure - 6 lbs. (2.72 kg).
Input Resistance Options: 500, 1K, 5K, 10K ohms or bridge (refer to ordering information).
Power Rating: Refer to ordering information.
Recommended Maximum Input Voltage: Refer to ordering information.
Output Signal Change Over Full Stroke Range: 94% ±4% of input voltage.
Environmental Protection: NEMA 4/4X/6, IP67/68.
Operating Temperature: -40°F to 200°F (-40°C to 90°C).
Vibration Resistance: Up to 10 G’s to 2000 Hz maximum.
