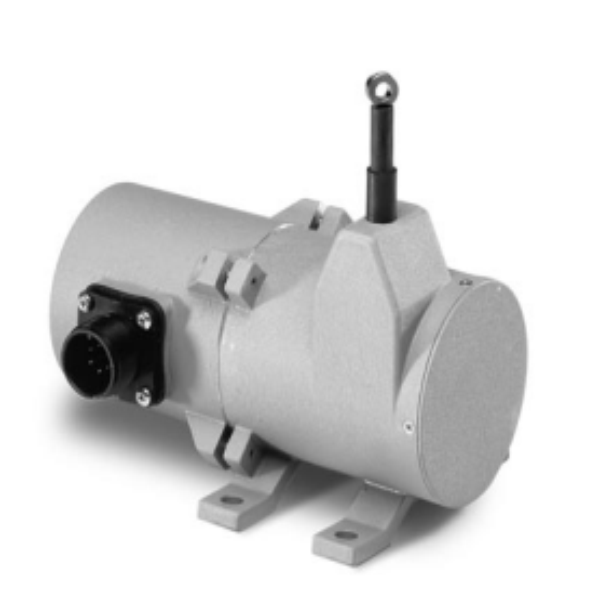

PT8000 Series Cable Incremental Encoder 1000 mm
SKU: PT8150-1000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial use, the Celesco PT8000 Series Cable Incremental Encoder—more especially, the PT8150-1000—is a reliable and extremely precise linear position transducer.
Because of its incremental optical encoder, this model is perfect for settings that demand accurate measurements and enduring functionality.
With a maximum measurement of 1000 mm, the PT8150-1000 provides dependability and versatility in a range of industrial environments.
Durability is guaranteed by its sturdy design, and integration with current systems is facilitated by its simple installation procedure.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Full Stroke Range Options:
0-625 mm.
0-1250 mm.
Output Signal: Incremental encoder (quadrature).
Accuracy: 0.04% full stroke (contact factory for higher accuracy).
Repeatability: ±0.02% full stroke.
Resolution Options: 20 to 500 pulses per inch.
Measuring Cable Options:
Nylon-coated stainless steel.
Thermoplastic.
Enclosure Material:
Powder-painted aluminium.
Stainless steel.
Sensor Type: Optical encoder.
Maximum Retraction Acceleration: Refer to ordering information.
Weight:
Aluminium enclosure: 3 lbs. max.
Stainless steel enclosure: 6 lbs. max.
Input Voltage and Current: Refer to ordering information.
Environmental Protection:
NEMA 4/4X/6.
IP67.
Operating Temperature: 0° to 160°F (-17° to 71°C).
Vibration Resistance: Up to 10g to 2000 Hz maximum.
Dimensions:
Length: 3.6 inches (91 mm).
Width: 5.6 inches (141 mm).
