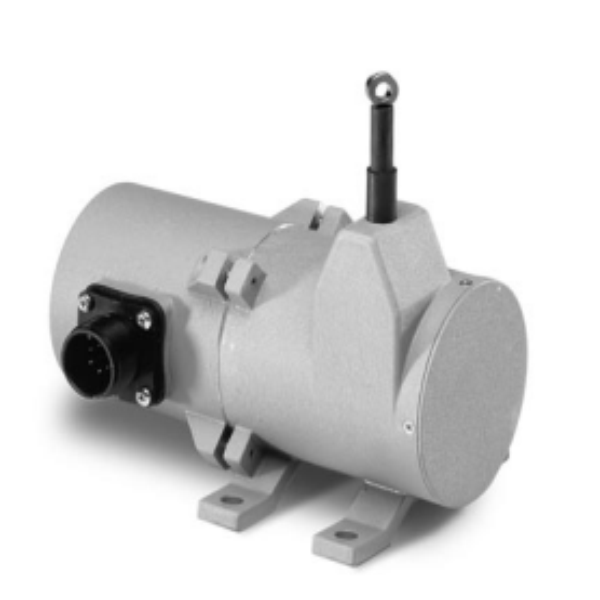

PT8000 Series Cable Incremental Encoder 1500 mm
SKU: PT8150-1500
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Celesco PT8000 Series Cable Incremental Encoder, specifically the PT8150-1500, is a robust and highly accurate linear position transducer designed for industrial applications.
This model features an incremental optical encoder that ensures precise measurements and long-lasting performance.
The PT8150-1500 can measure up to 1500 mm (approximately 60 inches) and is housed in a durable aluminium or stainless-steel enclosure, making it suitable for harsh environments.
Its design allows for easy installation and operation, even in areas where traditional rod-type measurement devices are impractical.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Full Stroke Range Options: 0-625 mm, 0-1250 mm.
Output Signal: Incremental encoder (quadrature).
Accuracy: 0.04% full stroke (contact factory for higher accuracy).
Repeatability: ±0.02% full stroke.
Resolution Options: 20 to 500 pulses per inch.
Measuring Cable Options: Stainless steel or thermoplastic.
Enclosure Material: Powder-painted aluminium or stainless steel.
Sensor Type: Optical encoder.
Maximum Retraction Acceleration: See ordering information.
Weight: Aluminium enclosure - 3 lbs. (1.36 kg), Stainless steel enclosure - 6 lbs. (2.72 kg).
Input Voltage: See ordering information.
Input Current: See ordering information.
Environmental Protection: NEMA 4/4X/6, IP67.
Operating Temperature: 0° to 160°F (-17° to 71°C).
Vibration Resistance: Up to 10g to 2000 Hz maximum.
Dimensions:
Length: 5.6 inches (141 mm).
Width: 3.6 inches (91 mm).
Height: 3.0 inches (76 mm).
Eyelet Detail: Ø.191 inches (4.19 mm), Ø.375 inches (9.52 mm).
