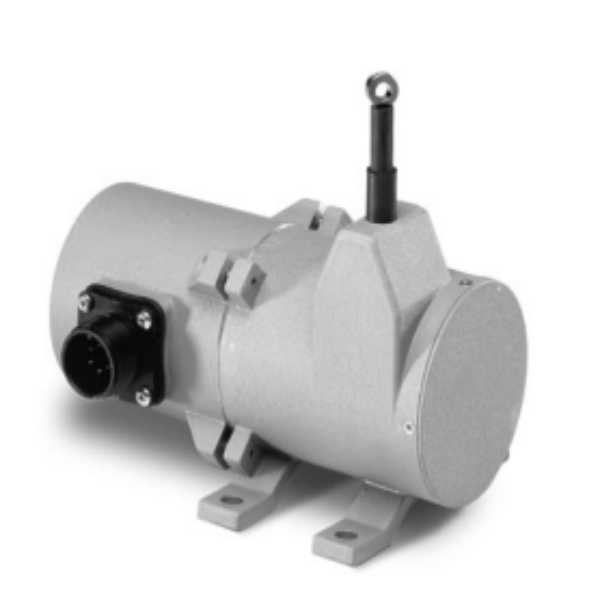

PT8000 Series Cable Incremental Encoder 500 mm
SKU: PT8150-500
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
For industrial use, the Celesco PT8000 Series Cable Incremental Encoder—more especially, the PT8150-500—is a reliable and extremely precise linear position sensor.
This cable-actuated sensor is perfect for settings that need durability and accurate measurement since it transforms linear position into an incremental encoder output.
The PT8150-500 model is designed to endure challenging environments and provides dependable performance along with several adaptable features to meet different industrial requirements.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Full Stroke Range: 0-500 mm.
Output Signal: Incremental encoder (quadrature).
Accuracy: ±0.04% full stroke.
Repeatability: ±0.02% full stroke.
Resolution: 20 to 500 pulses per inch.
Measuring Cable: Stainless steel or thermoplastic.
Enclosure Material: Powder-painted aluminium or stainless steel.
Environmental Protection: NEMA 4X/6, IP67.
Operating Temperature: 0° to 160°F (-17° to 71°C).
Vibration Resistance: Up to 10g to 2000 Hz.
Weight: Aluminium enclosure: 3 lbs (1.36 kg); Stainless steel enclosure: 6 lbs (2.72 kg).
Input Voltage and Current: See ordering information.
Output Driver Options: See ordering information.
Cable Guide Options: Standard nylon cable guide.
Special Features: VLS (Velocity Limiting System) option to prevent free-release damage.
