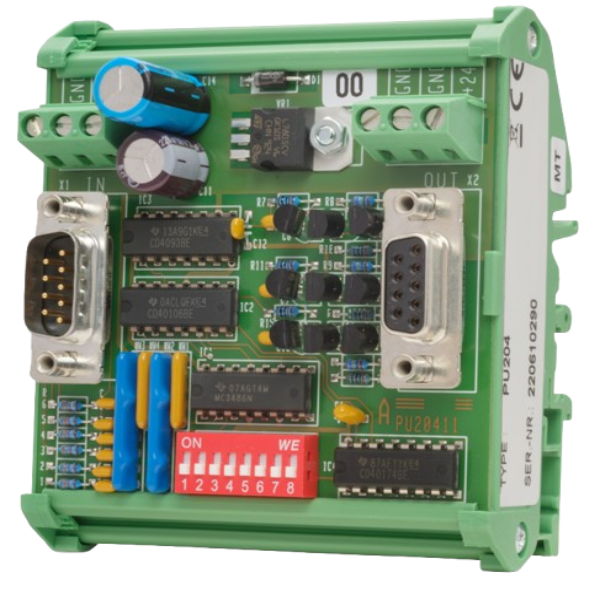

Level Converter TTL - RS422 - HTL PU204
SKU: PU204
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Converting incremental signals from TTL or RS422 formats to HTL (10...30 VDC) pulse levels is the purpose of the Motrona PU204 Level Converter.
Additionally, it offers direction information with a 90° phase shift between channels A and B. This information can be transmitted as distinct directional pulses or as a static HIGH/LOW signal.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Input Signals: A, /A, B, /B, Z, /Z (TTL / RS422).
Output Signals: A, B, Z (HTL).
Input Frequency: Up to 200 kHz.
Power Supply: 10 ... 30 VDC.
Directional Output: 90° phase shift between A and B, static HIGH/LOW signal, or separate directional pulses.
Housing: Open print design with a plastic frame for DIN rail mounting (EN 60715).
