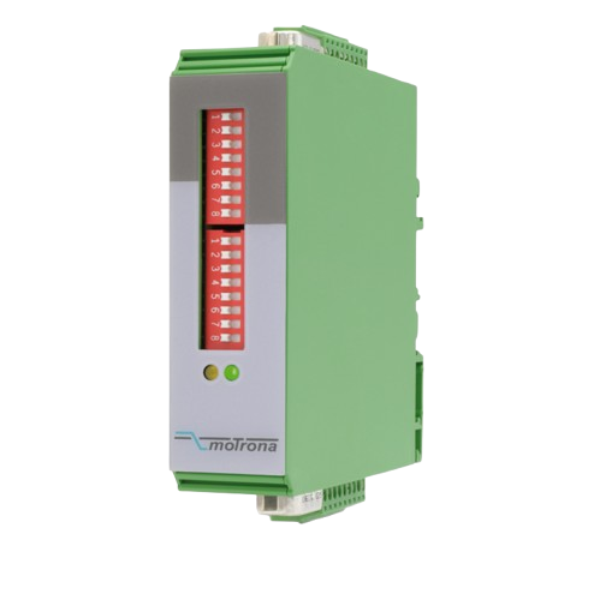

Universal Level Converter and Direction Decoder PU210
SKU: PU210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
The Motrona PU210 Universal Level Converter and Direction Decoder is a multipurpose tool that offers potential separation and direction decoding in addition to converting incremental encoder signals into various formats.
It is capable of handling incremental encoder signals that are single-track or two-lane and can be constructed as HTL, TTL, or RS422 levels.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Input Signals: A, B, Z (HTL) or A, /A, B, /B, Z, /Z (RS422).
Input Frequency: Up to 500 kHz.
Output Signals: A, /A, B, /B, Z, /Z (RS422, HTL).
Power Supply: 5 ... 30 VDC.
Potential Separation: Between input and output.
Direction Decoding: Direction can be defined by a 90° phase shift of channels A and B or by a static direction signal.
Housing: Snap-on housing for top hat rail (EN 60715).
