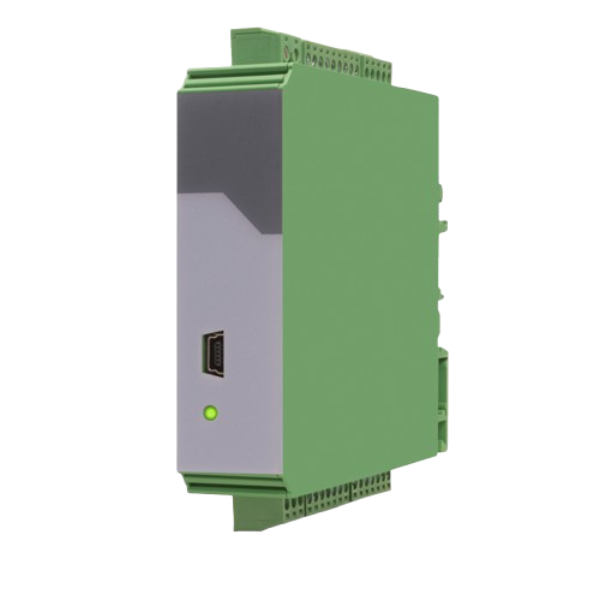

Signal Converter Transonic - Analog - Serial RS232-RS485 PV210
SKU: PV210
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
Transonic start-stop signals can be converted into serial RS232/RS485 or analog standard signals (±10 V, 0/4... 20 mA) with the Motrona PV210 Signal Converter.
With six control inputs and six outputs, this adaptable device can be utilized in a variety of ways and allows for linearization with 24 control points.
Buy currently uses Select Automation shop pricing and checkout.
Key Features:
Start-Stop Interface: For absolute transducers and magneto strictive sensors.
Adjustable Frequency: Of the unit pulses from 62.5 Hz to 5 kHz.
Analog Output: ±10 V or 0/4 ... 20 mA, 16-bit resolution.
Serial Interface: RS232 and RS485 for configuration and serial readout.
Pulse Inputs: A, B (HTL), A, /A, B, /B (RS422, HTL).
SSI Input: DATA+, DATA-, CLOCK+, CLOCK- up to 32 bits.
Power Supply: 18 ... 30 VDC.
Housing: Compact housing for mounting on 35 mm top-hat rail (EN 60715).
USB Interface: For configuration and serial readout.
