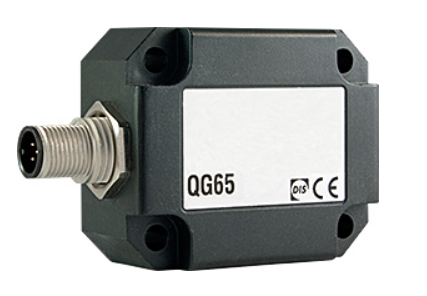

Inclinometer
SKU: QG65
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Product Overview:
In one or two axes, inclinometers measure the angle regarding the direction of the force of gravity.
The DIS Sensors QG family of inclinometers is built on reliable MEMS technology, and because of its modular architecture, it's simple to tailor each sensor to a particular use.
Additionally, the convenient confirmatory on some models makes it simple for the end user to modify the sensor to suit their preferences.
Buy currently uses Select Automation shop pricing and checkout.
Specifications
Single axis measurement range: ±10°; ±30°; ±90°; 0 - 360°
Double axis measurement range: ±10°; ±30°; ±90°
Energy supply: 5 V dc or 10 - 30 V dc
Analogue output: 0.5 - 4.5 V or 4 - 20 mA
Digital output: CANopen (Safety); RS232
Level of protection: IP67, IP68 or IP69K
Precision: depending on model and range: as high as ±0.02°
Programmable: fi ltering, measuring range
Zeroing possibility: depends on model
Functional safety: SIL2/PLd (optional)
Housing: (reinforced) plastic or stainless steel
