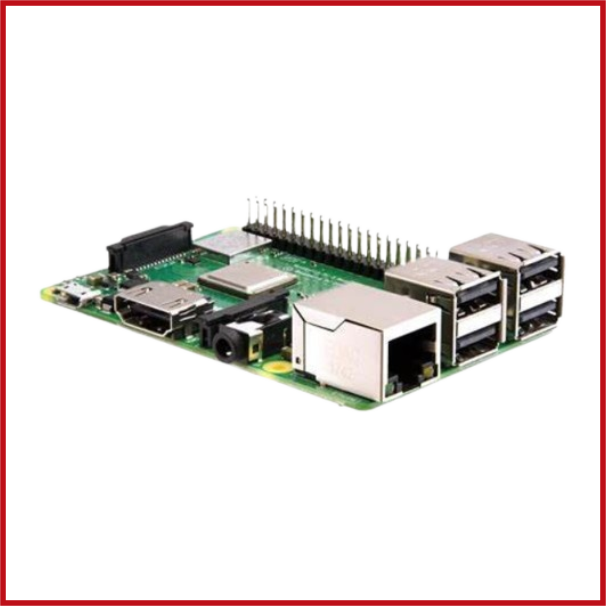

Raspberry Pi3 Module B plus
SKU: RAS-0001-D13
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The Raspberry Pi 3 Model B+ is a compact single-board computer designed for general-purpose computing, embedded systems, and IoT applications.
It features a quad-core ARM Cortex-A53 processor and integrated dual-band wireless connectivity, offering improved performance and network stability compared to earlier Raspberry Pi 3 models.
It includes onboard Wi-Fi, Bluetooth, Ethernet, HDMI output, and USB ports, making it a complete low-cost computing platform suitable for development, automation, education, and lightweight desktop use.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
CPU: Broadcom BCM2837B0, Quad-core ARM Cortex-A53 @ 1.4GHz.
RAM: 1GB LPDDR2.
GPU: Broadcom VideoCore IV.
Wireless: Dual-band Wi-Fi (2.4GHz & 5GHz), Bluetooth 4.2 / BLE.
Ethernet: Gigabit Ethernet over USB 2.0 (up to ~300 Mbps real-world).
USB Ports: 4 × USB 2.0.
Video Output: Full-size HDMI (1080p support).
Storage: microSD card slot.
Power Input: 5V / 2.5A via micro-USB.
GPIO: 40-pin header (compatible with HATs).
Networking Enhancements: Integrated PoE support (with optional HAT).
Form Factor: 85 × 56 mm (credit-card sized board).
