2000W silicon controlled high power electronic voltage regulator
SKU: REG-0077-B06
Sold by Select Automation
Final price R 33.66
R 29.27 excl. VAT
Availability: In Stock (16 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description

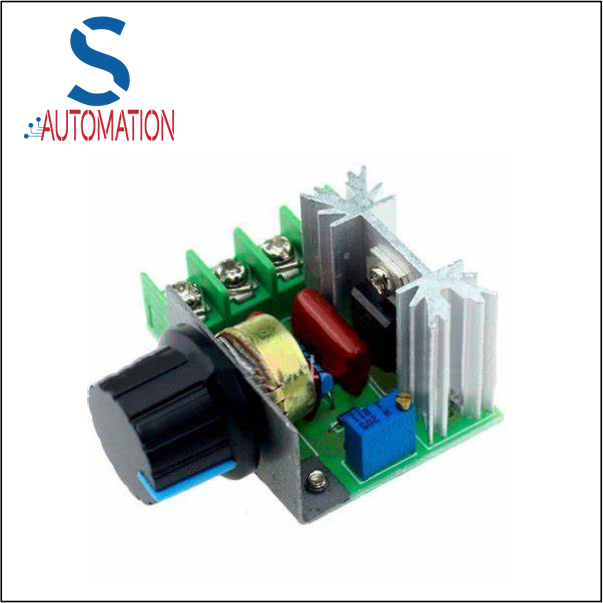

The 2000W Silicon Controlled High Power Electronic Voltage Regulator is a small AC power controller intended for smooth and flexible voltage regulation of resistive loads.
It uses a silicon-controlled rectifier (SCR) to provide continuous output voltage adjustment, making it excellent for managing the power of heaters, incandescent lamps, soldering irons, and universal alternating current motors.
The regulator includes a rotary potentiometer for precise output adjustment, and an integrated aluminium heatsink for effective heat dissipation during operation.
Its small size allows for simple installation in DIY projects, industrial control systems, and laboratory applications.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: SCR AC Voltage Regulator Module.
Maximum Rated Power: 2000W (peak resistive load).
Recommended Continuous Power: ≤1000W (without additional cooling).
Input Voltage: 220–240V AC, 50/60Hz.
Output Voltage: Adjustable 50V–220V AC.
Maximum Current: 25A SCR (device rating).
Recommended Continuous Current: Up to 10A with adequate heatsinking.
Control Method: SCR (Silicon Controlled Rectifier) Phase-Angle Control.
Adjustment: Rotary Potentiometer.
Voltage Regulation Range: 0–100% (50–220VAC).
Heat Dissipation: Aluminium Heatsink.
Operating Temperature: -20°C to +85°C.
