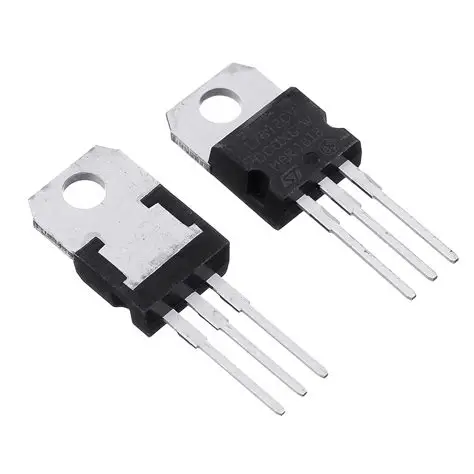

KA7812 VOLTAGE REGULATOR 12V 1A
SKU: REG-0086-B06
Sold by Select Automation
Final price R 178.73
R 155.42 excl. VAT
Availability: In Stock (36 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The KA7812 is a fixed positive linear voltage regulator with three terminals.
When correctly heat-sunk, it produces a steady 12 V DC output with a maximum load current of 1 A.
Its user-friendly design, internal current limitation, thermal shutdown, and safe operating area protection make it almost indestructible and extremely dependable under typical working circumstances.
It can be modified with external components to deliver adjustable voltages and currents, despite its primary use as a fixed regulator.
This makes it adaptable for DIY power supply projects, industrial equipment, and consumer electronics.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Type: Fixed positive linear voltage regulator.
Output voltage (nominal): 12 V.
Output current (max): 1 A (with adequate heat sinking).
Input voltage range: 14.5 V – 30 V (absolute max ~35 V).
Dropout voltage: ~2 V.
Line regulation: ≤0.24%.
Load regulation: ≤0.24%.
Voltage tolerance: ±5%.
Protection features: Internal current limiting, thermal shutdown, safe operating area protection.
Operating junction temperature: 0 °C to +125 °C.
Applications: Consumer electronics, industrial power supplies, DIY regulated circuits.
