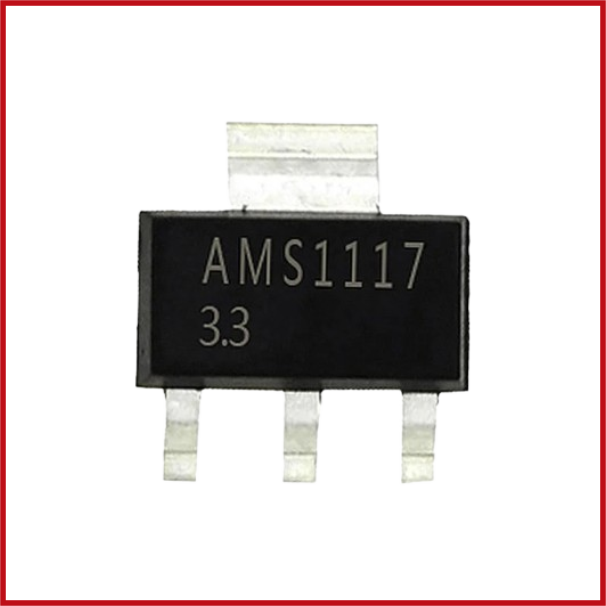

AMS1117-3.3 3.3V 1A Low Dropout (LDO) Linear Voltage Regulator – SOT-223
SKU: REG-0092-B06
Sold by Select Automation
Final price R 3.45
R 3.00 excl. VAT
Availability: In Stock (30 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
The AMS1117-3.3 is a fixed 3.3V Low Dropout (LDO) linear voltage regulator that generates a stable and regulated output from higher DC input voltages.
It is extensively used in embedded systems, development boards, IoT devices, and power supply circuits since it can deliver up to 1A of output current (with proper heatsinking).
The regulator has a low dropout voltage, efficient line and load regulation, built-in current limiting, and thermal shutdown protection to ensure stable operation.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Product Type: Low Dropout (LDO) Linear Voltage Regulator.
Model: AMS1117-3.3.
Output Voltage: 3.3V Fixed.
Output Current: Up to 1A (with adequate heatsinking).
Input Voltage Range: 4.5V–15V DC.
Dropout Voltage: 1.1V (1A load), 1.3V max.
Output Voltage Accuracy: ±1%.
Quiescent Current: 5Ma.
Line Regulation: 0.2%.
Load Regulation: 0.4%.
Protection Features: Current Limiting and Thermal Shutdown.
Package: SOT-223 (most common), TO-252 and others depending on manufacturer.
Operating Junction Temperature: -40°C to +125°C.
