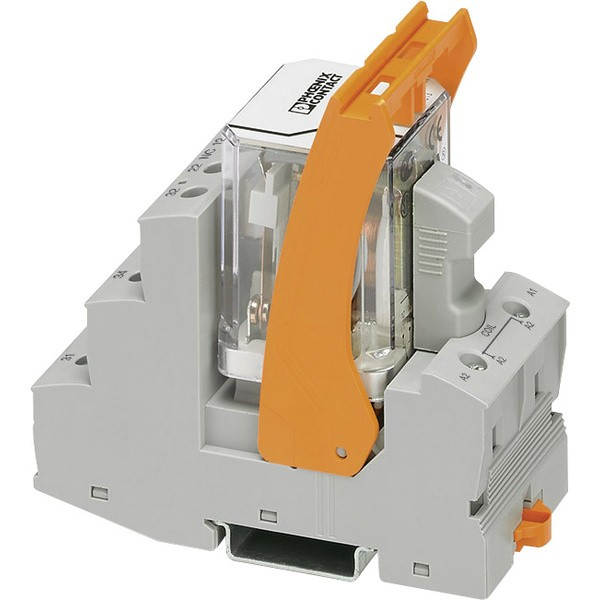

REL-OR3/LDP-24DC/3X21 RELAY

Specification Maximum power dissipation for nominal condition: 1.44 W Test voltage (Winding/contact): 2.5 kVrms (50 Hz,1 min winding/contact) Test voltage (Changeover contact/changeover contact): 2.5 kVrms (50 Hz, 1 min changeover contact/changeover contact) Rated insulation voltage: 250 V AC Rated surge voltage: 4 kV INPUT DATA Nominal input voltage UN: 24 V DC Input voltage range: 20.4 V DC 26.4 V DC (20 °C) Drive and function: monostable Drive (polarity): polarized Typical input current at UN: 60 mA Input power dissipation for UN: 1.44 W Protective circuit: Freewheeling diode Status display: LED (yellow) Coil resistance: 430 OHM  ±10 % OUTPUT DATA Contact switching type: 3 changeover contacts Type of switch contact: Single contact Contact material: AgNi Maximum switching voltage:250 V DC-440 V AC Minimum switching voltage: 10 V (At 24 mA) Limiting continuous current: 10 A Maximum inrush current:30 A (20 ms, N/O contacts) Min. switching current: 10 mA (at 24 V) Interrupting rating (ohmic load) max: 240 W (at 24 V DC) 124 W (at 48 V DC) 108 W (at 60 V DC) 52 W (at 110 V DC) 48 W (at 220 V DC) 2500 VA (for 250 V AC) Motor load according to UL 508: 1/2 HP, 240 V AC (N/O contact)
