FINDER TYPE 40.52 5A 250VAC 24VDC 8 PIN
SKU: REL-0056-B07
Sold by Select Automation
Final price R 62.55
R 54.39 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:

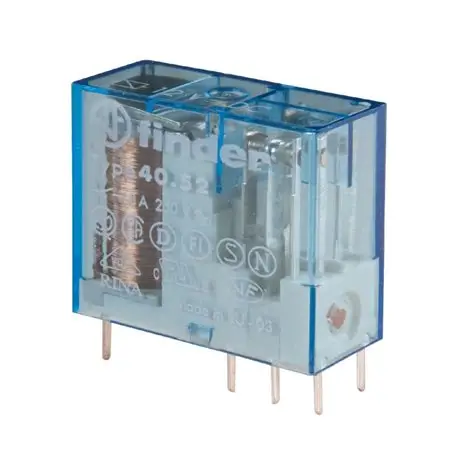

A general-purpose electromechanical relay, Type 40.52, is made for dependable switching in commercial and industrial settings.
It has an eight-pin design, a 24 VDC coil, and contact ratings of 5 A at 250 VAC.
This relay is small, sturdy, and appropriate for PCB mounting.
It offers reliable isolation and control in circuits that need medium-power switching.
Its design guarantees a long service life, steady performance, and compatibility with a variety of sockets and accessories.
For printed circuit boards, the type 40.52 small relay 1 CO 8 A has a 5.0 mm pin pitch and plugs into sockets from the 95 Series.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Pin length 3.5 mm for PCB mounting.
Pin length 5.3 mm for plug-in relays.
DC coil (650 mW or 500 mW).
Variant with cadmium-free contacts.
8 mm, 6 kV (1.2/50µs) insulation between coil and contacts.
Compliance with glow wire test according to EN 60335-1.
For use with 95 Series sockets with push-in, screw or spring terminals for mounting on 35 mm rail (EN 60715) or PCB.
For use with 99 Series coil indication and EMC suppression modules and Type 86.30 timer modules.
Specifications:
Type: Electromechanical relay.
Contact configuration: DPDT (Double Pole Double Throw).
Number of pins: 8.
Coil voltage: 24 VDC.
Contact rating: 5 A at 250 VAC.
Mounting style: PCB or socket compatible.
Isolation: Provides electrical separation between coil and contacts.
Applications: Industrial control, automation systems, consumer electronics, general switching tasks.
