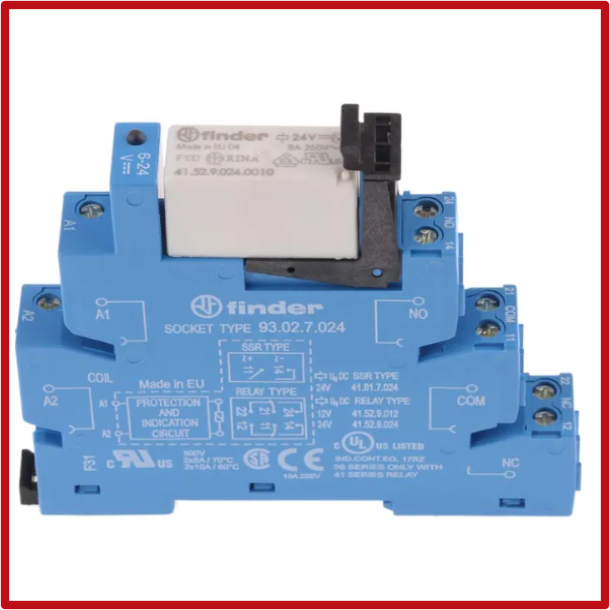

Finder Relay, 8A 2CO 38SER Relay Int/Face 24VDC
SKU: REL-0061-B07
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
This relay acts as an electrical switch controlled by a 24 VDC coil.
When the coil is energized, it changes the state of its two sets of contacts, allowing it to control or isolate circuits carrying higher voltages or currents.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Coil Voltage: 24V dc.
Contact Configuration: DPDT.
Mounting Type: DIN Rail.
Series: 38 Series.
Number of Poles: 2.
Terminal Type: Screw.
Switching Voltage: 250 → 400V.
Depth: 77.1mm.
Height: 89.7mm.
Length: 14mm.
Contact Material: Silver Alloy.
Input Current: 19.5mA.
Operating Temperature Range: -40 → +70°C.
Turn Off Time: 10ms.
Dimensions: 89.7 x 14 x 77.1mm.
Standards Met: CE, EAC.
