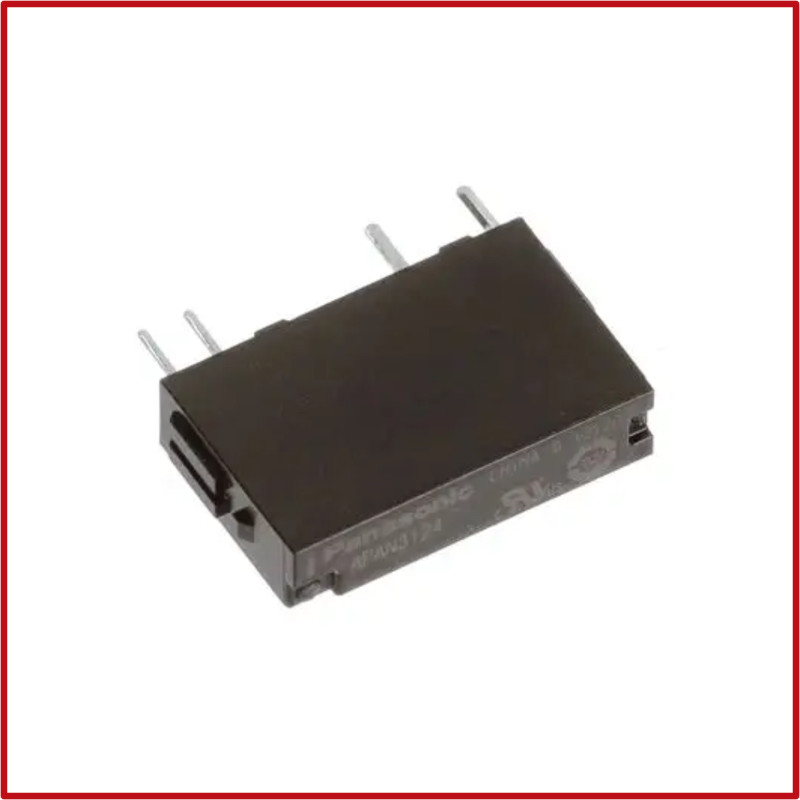

APAN3124 - 5A 250V AC 30V DC Relay
SKU: REL-0062-B07
Price on request
Availability: In Stock (9 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The APAN3124 is a small, general-purpose power relay from Panasonic's PA-N series, optimized for PCB mounting.
The device has a 24 VDC coil with an SPST-NO (Single Pole, Single Throw - Normally Open) contact design that can switch up to 5 A at 250 VAC or 110 VDC.
Its compact size and reinforced insulation make it ideal in industrial automation, PLC interfaces, HVAC systems, office equipment, and test instruments.
Key Highlights:
Slim profile allows for space-saving PCB layouts.
High reliability and a long mechanical life.
Low coil power consumption (~110 mW).
Operating temperatures range from -40°C to +90°C.
Compliance with RoHS and IEC safety standards.
Buy currently uses Select Automation shop pricing and checkout.
Electrical Specifications:
Contact Configuration: SPST NO (1 Form A).
Contact Rating:
5 A at 250 VAC (resistive load).
5 A at 110 VDC (resistive load).
Coil Voltage: 24 VDC.
Coil Resistance: ~5,200 Ω.
Coil Power Consumption: ~110 mW.
Operate Voltage (typical): 18 VDC.
Release Voltage (typical): 2.4 VDC.
Dielectric Strength:
2,000 Vrms between coil and contacts.
1,000 Vrms between open contacts.
Insulation Resistance: ≥100 MΩ at 500 VDC.
Mechanical Specifications:
Mounting Style: Through hole PCB.
Dimensions: Approx. 20.5 mm (L) × 7.2 mm (W) × 15 mm (H).
Weight: ~5 g.
Contact Material: AgSnO₂ (silver tin oxide).
Mechanical Life: ~50 million operations.
Electrical Life: ~100,000 operations at rated load.
Environmental Ratings:
Operating Temperature Range: −40 °C to +90 °C.
Storage Temperature Range: −40 °C to +100 °C.
Humidity: 5–85% RH (non condensing).
Compliance: RoHS, IEC safety standards.
