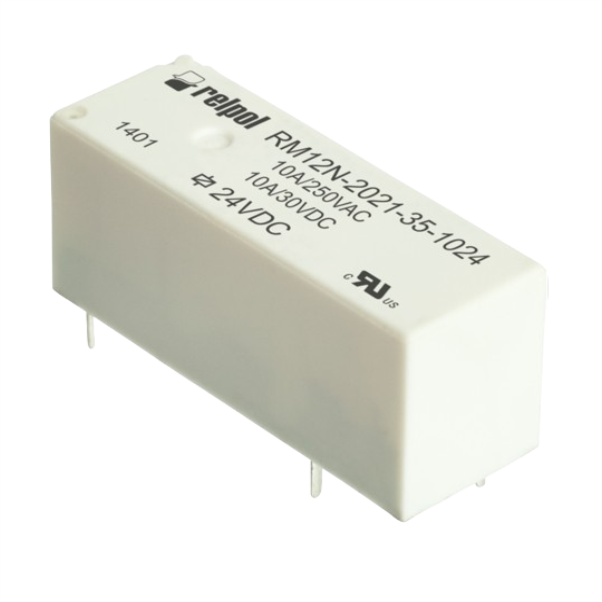

RM12N, Miniature Relay, RM12N-2021-35-1024
SKU: RM12N-2021-35-1024
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM12N Miniature relays:
DC coils - of up to 24 V DC, low coil power 0,22 ... 0,29 W. For PCB. Small dimensions, light weight. Applications: for household electrical appliance, automation systems, electrical equipment, instrument and meter, telecommunication devices, remote control facilities. Compliance with standards: EN 61810-1, EN 60730-1, EN 60335-1, UL 508, CSA 22.2 No.14-95. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM12N-2021-35-1024, 1 NO. Contact material: AgNi. Voltage coil 24 V DC. Cover protection category IP 67.
• Number and type of contacts 1 CO, 1 NO
• Contact material AgNi, AgNi/Au gold plating, AgSnO2, AgSnO2/Au gold plating
• Rated / max. switching voltage AC 250 V / 440 V
• Min. switching voltage 6 V
• Rated load AC1 1 CO: 8 A / 250 V AC, 1 NO: 10 A / 250 V AC
• Rated load DC1 1 CO: 8 A / 30 V DC, 1 NO: 10 A / 30 V DC
• Min. switching current 100 mA AgNi, AgSnO2, 50 mA AgNi/Au gold plating, AgSnO2/Au gold plating
• Rated current 8 A / 250 V AC, 10 A / 30 V DC
• Max. breaking capacity AC1 2 500 VA
• Contact resistance ≤ 100 mΩ
• Direct PCB mounting
• Cover protection category IP 40 or IP 67 EN 60529
