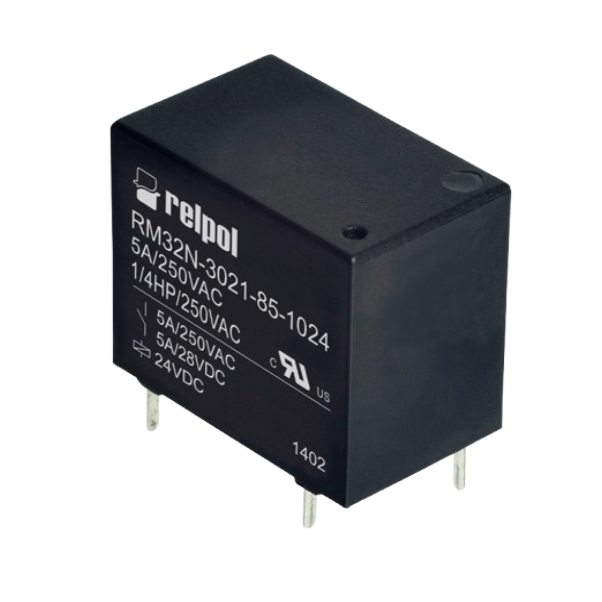

RM32N, Miniature Relay, RM32N-3021-85-1024
SKU: RM32N-3021-85-1024
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM32N Miniature relays:
DC coils - of up to 24 V DC, low coil power 0,20 W (sensitive coil) or 0,45 W (standard coil). For PCB. Very small dimensions, light weight. High load up to 10 A / 125 V AC. Applications: for household electrical appliance, automation systems, electrical equipment, instrument and meter, telecommunication devices, remote control facilities, light controllers, etc. Recognitions, certifications, directives: RoHS.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM32N-3021-85-1024, 1 NO. Contact material: AgSnO2. Voltage coil 24 V DC. Rated load AC1 5 A / 250 V AC.
• Number and type of contacts 1 CO, 1 NO
• Contact material AgSnO2
• Rated / max. switching voltage AC 250 V / 277 V
• Min. switching voltage 5 V
• Rated load AC1 1 CO: 5 A / 5 A (NO/NC) / 250 V AC, 1 NO: 5 A / 250 V AC
• Rated load AC1 1 CO: 10 A / 125 V AC, 1 NO: 10 A / 125 V AC
• Rated load DC1 1 CO: 5 A / 5 A (NO/NC) / 28 V DC, 1 NO: 5 A / 28 V DC
• Motor load acc. to UL 508 1/4 HP 250 V AC, single-phase motor
• Rated current 5 A
• Max. breaking capacity AC1 1 250 VA
• Contact resistance ≤ 100 mΩ
• Direct PCB mounting.
• Cover protection category IP 67 EN 60529
