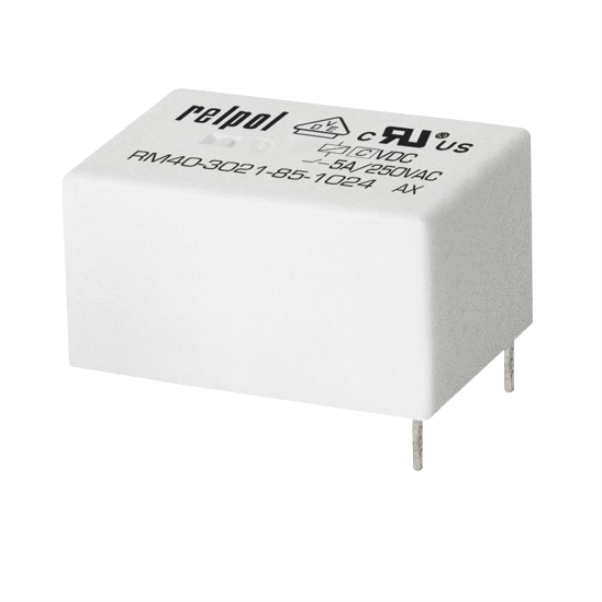

RM40, Miniature Relay, RM40-2011-85-1012
SKU: RM40-2011-85-1012
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM40 Miniature relays:
Very small dimensions. High switching capacity up to 5 A or 8 A. Sealed, for wave soldering and cleaning. Available special versions: halogen-free. Applications: for household equipment, office machines, control devices, alarm systems, in industrial control, monitoring systems, industrial controllers. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM40-2011-85-1012, 1 CO. Contact material: AgNi. Voltage coil 12 V DC. Rated load AC1 5 A / 250 V AC.
• Number and type of contacts 1 CO
• Contact material 1 CO: AgNi, AgNi/Au hard gold plating
• Rated / max. switching voltage AC 1 CO: 250 V / 380 V
• Min. switching voltage 5 V AgNi, 1 V AgNi/Au hard gold plating
• Rated load AC1 1 CO: 5 A / 250 V AC, DC1 1 CO: 5 A / 30 V DC
• Min. switching current 10 mA AgNi, 1 mA AgNi/Au hard gold plating
• Rated current 1 CO: 5 A
• Max. breaking capacity AC1 1 CO: 1 250 VA
• Min. breaking capacity 50 mW AgNi, 1 mW AgNi/Au hard gold plating
• Contact resistance ≤ 100 mΩ
• Direct PCB mounting
• Cover protection category IP 67 EN 60529
