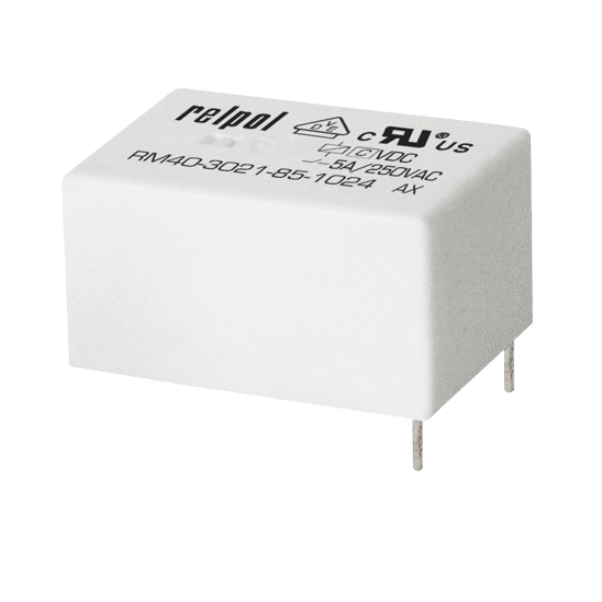

RM40, Miniature Rleay,
SKU: RM40-3021-85-1048
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM40 Miniature relays:
Very small dimensions. High switching capacity up to 5 A or 8 A. Sealed, for wave soldering and cleaning. Available special versions: halogen-free. Applications: for household equipment, office machines, control devices, alarm systems, in industrial control, monitoring systems, industrial controllers. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM40-3021-85-1048, 1 NO. Contact material: AgSnO2. Voltage coil 48 V DC. Rated load AC1 8 A / 250 V AC.
• Number and type of contacts 1 NO
• Contact material 1 NO: AgSnO2
• Rated / max. switching voltage AC 1 NO: 250 V / 440 V
• Min. switching voltage 5 V AgSnO2
• Rated load AC1 1 NO: 8 A / 250 V AC, DC1 1 NO: 8 A / 30 V DC
• Min. switching current 10 mA AgSnO2
• Rated current 1 NO: 8 A
• Max. breaking capacity AC1 1 NO: 2 000 VA
• Min. breaking capacity 50 mW AgSnO2
• Contact resistance ≤ 100 mΩ
• Direct PCB mounting
• Cover protection category IP 67 EN 60529
