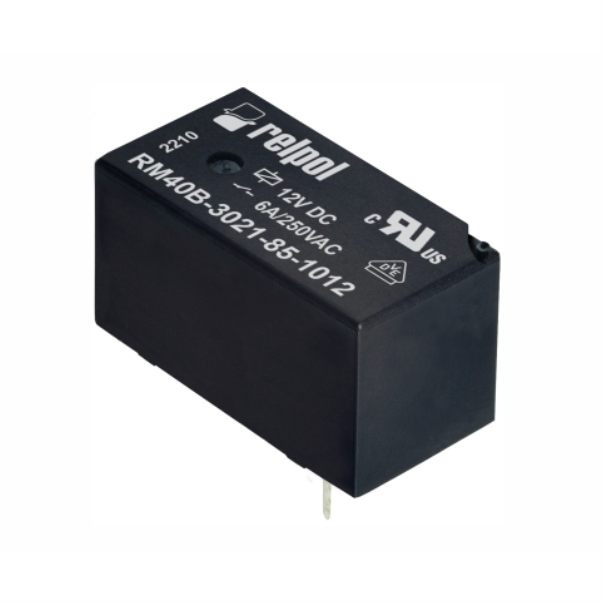

RM40B, Miniature Relay, RM40B-3021-85-1012
SKU: RM40B-3021-85-1012
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM40B Miniature relays:
DC coils - of up to 48 V DC, low coil power 0,20 W, insulation class F: 155 °C. For PCB. Very small dimensions, light weight. High load up to 10 A / 120 V AC. Applications: for household electrical appliance, automation systems, electrical equipment, instrument and meter, telecommunication devices, remote control facilities, light controllers, etc. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM40B-3021-85-1012,1 NO. Contact material: AgSnO2. Voltage coil 12 V. DC Rated load 6 A
• Number and type of contacts 1 CO, 1 NO
• Contact material AgSnO2, AgNi
• Rated / max. switching voltage AC 250 V / 277 V
• Rated load AC1 1 CO: 6 A / 5 A (NO/NC) / 250 V AC
• Rated load AC1 1 NO: 6 A / 250 V AC
• Rated load AC1 1 NO: 10 A / 120 V AC (cUL)
• Rated load DC1 1 CO: 6 A / 5 A (NO/NC) / 30 V DC
• Rated load DC1 1 NO: 6 A / 30 V DC
• Motor load acc. to UL 508 1/4 HP 240/277 V AC, 40 °C, single-phase motor
• Max. make current 8 A
• Rated current 6 A
• Max. breaking capacity AC1 1 600 VA
• Contact resistance ≤ 100 mΩ 1 A, 6 V DC
• Direct PCB mounting.
• Cover protection category IP 50 EN 60529
