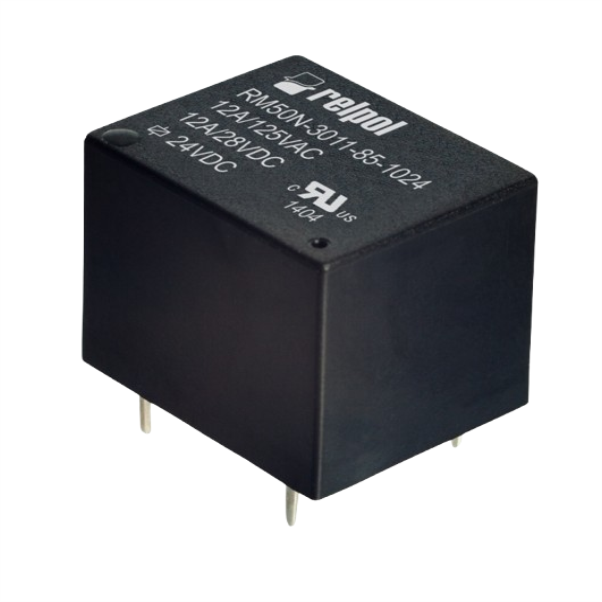

RM50, Miniature Relay, RM50-3011-85-1048
SKU: RM50-3011-85-1048
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM50 Miniature relays:
Small dimensions. Switching current up to 10 A / 15 A. The plastics applied provide for the operation of the relays at high temperature and in chemical environment. Sealed, for soldering. Applications: for household equipment, office machines, audio equipment, coffee machines, control devices, etc. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM50-3011-85-1048, 1 CO. Contact material: AgSnO2. Voltage coil 48 V DC. Rated load AC1 10 A / 240 V AC.
• Number and type of contacts 1 C/O, 1 NO
• Contact material AgSnO2
• Max. switching voltage AC/DC 277 V / 110 V
• Min. switching voltage 5 V
• Rated load AC1 10 A / 240 V AC, DC1 15 A / 24 V DC
• Min. switching current 15 mA
• Rated current 12 A
• Max. breaking capacity AC1 1 800 VA
• Min. breaking capacity 0,75 W
• Contact resistance ≤ 100 mΩ
• Direct PCB mounting
• Cover protection category IP 64
