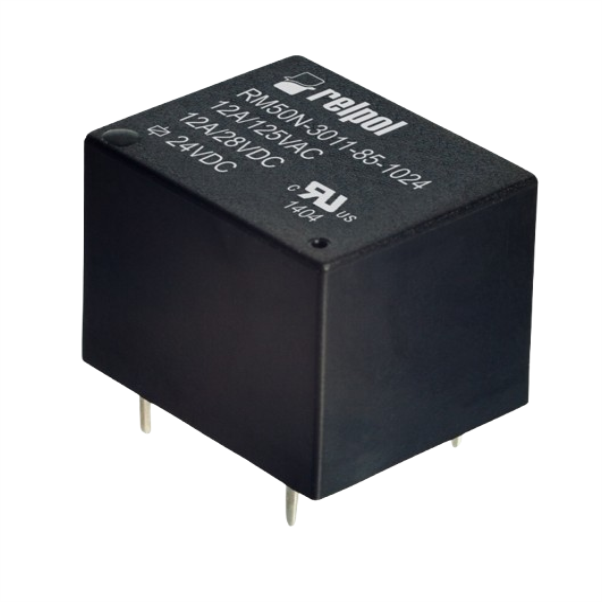

RM50N, Miniature Relay, RM50N-3011-85-1024
SKU: RM50N-3011-85-1024
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM50N Miniature relays:
DC coils - of up to 48 V DC, low coil power 0,36 W. For PCB. Small dimensions, light weight. Applications: for household electrical appliance, automation control, telecommunication devices, machinery electrical equipment. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM50N-3011-85-1024, 1 CO. Contact material: AgSnO2. Voltage coil 24 V DC. Rated load AC1 12 A / 125 V AC.
• Number and type of contacts 1 CO, 1 NO
• Contact material AgSnO2
• Rated / max. switching voltage AC 250 V / 277 V, DC 28 V / 110 V
• Min. switching voltage 5 V
• Rated load AC1 6 A / 250 V AC, 12 A / 125 V AC, DC1 12 A / 28 V DC
• Motor load acc. to UL 508 1/3 HP 250 V AC, single-phase motor
• Min. switching current 15 mA
• Rated current 12 A
• Max. breaking capacity AC1 1 500 VA
• Contact resistance ≤ 100 mΩ
• Direct PCB mounting.
• Cover protection category IP 67 EN 60529
