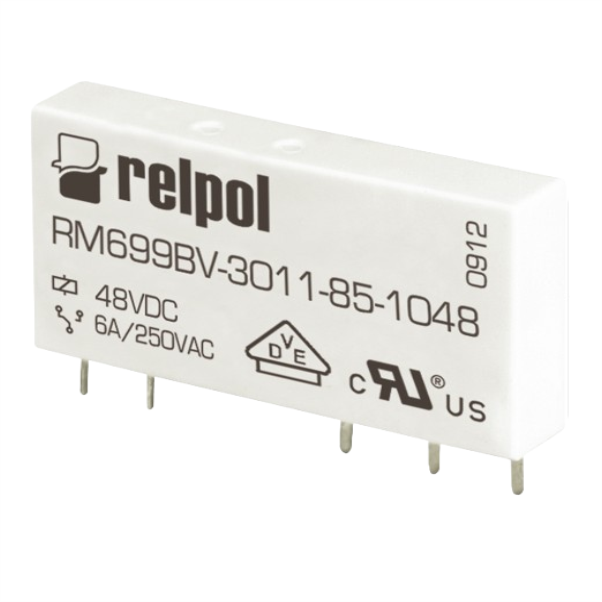

RM699BV, Miniature Relay, RM699BV-2011-85-1048
SKU: RM699BV-2011-85-1048
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM699B Miniature relays:
Cover width only 5 mm. Sealed for soldering and cleaning. Terminals arrangement: vertical version (V) and horizontal version (H). Applications: for PLC’s, industrial machinery, time relays, counters, temperature adjusters, measurement instruments, office equipment, etc. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM699BV-2011-85-1048, 1 CO. Contact material: AgNi. Voltage coil 48 V DC. Rated load AC1 6 A / 250 V AC.
• Number and type of contacts 1 CO, 1 NO
• Contact material AgSnO2, AgNi
• Max. switching voltage 400 V AC / 250 V DC
• Min. switching voltage 10 V
• Rated load (capacity) AC1 6 A / 250 V AC
• Rated load (capacity) AC15 3 A / 120 V; 1,5 A / 240 V (B300)
• Rated load (capacity) DC1 6 A / 30 V DC; 0,15 A / 250 V DC
• Rated load (capacity) DC13 0,22 A / 120 V; 0,1 A / 250 V (R300)
• Motor load acc. to UL 508 1/4 HP 240 V AC
• Motor load AC3 acc. to IEC 60947-4-1, 0,186 kW 240 V AC
• Min. switching current 100 mA
• Max. make current 10 A 20 ms
• Rated current 6 A
• Max. breaking capacity AC1 1 500 VA
• Min. breaking capacity 1W
• Contact resistance ≤ 100 mΩ 100 mA
• RM699B horizontal version (H) are designed for direct PCB mounting/RM699B vertical version (V) are designed for: direct PCB mounting, plug-in sockets
• Cover protection category IP 67 EN 60529
