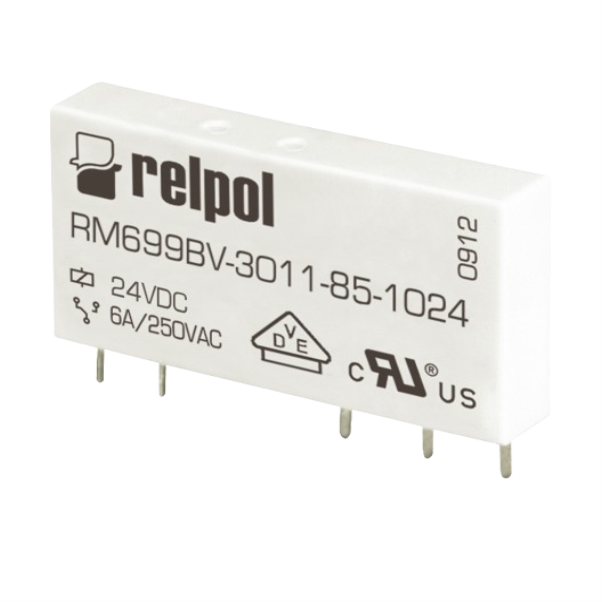

RM699BV, Miniature Relay, RM699BV-3221-85-1024
SKU: RM699BV-3221-85-1024
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM699B Miniature relays:
Cover width only 5 mm. Sealed for soldering and cleaning. Terminals arrangement: vertical version (V) and horizontal version (H). Applications: for PLC’s, industrial machinery, time relays, counters, temperature adjusters, measurement instruments, office equipment, etc. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM699BV-3221-85-1024, 1 NO. Contact material: AgSnO2/Au hard gold plating. Voltage coil 24 V DC. Rated load AC1 0,05 A / 30 V AC.
• Number and type of contacts 1 CO, 1 NO
• Contact material AgSnO2/Au hard gold plating, AgNi/Au hard gold plating
• Max. switching voltage 30 V AC / 36 V
• Min. switching voltage 5 V
• Rated load (capacity) AC1 0,05 A / 30 V A
• Rated load (capacity) DC1 0,05 A / 36 V DC
• Min. switching current 10 mA, 1 mA 24 V
• Max. make current 0,1 A 20 ms
• Rated current 0,05 A
• Max. breaking capacity AC1 1,2 VA
• Min. breaking capacity 0,05 W
• Contact resistance ≤ 30 mΩ 10 mA, 5 V
• RM699B horizontal version (H) are designed for direct PCB mounting/RM699B vertical version (V) are designed for: direct PCB mounting, plug-in sockets
• Cover protection category IP 67 EN 60529
