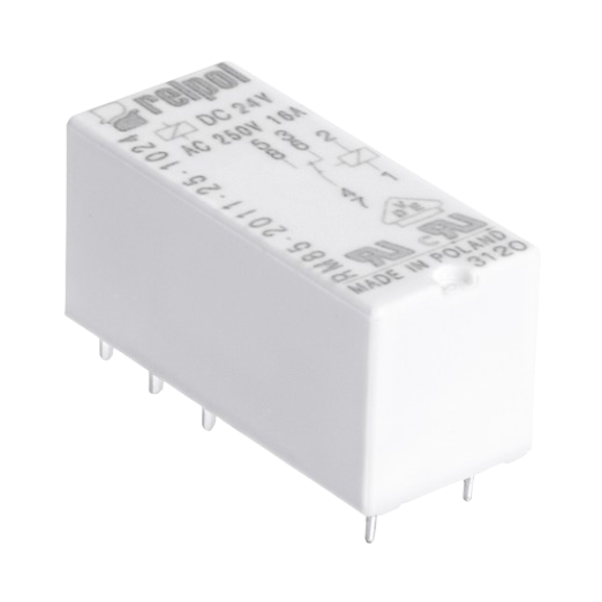

RM85, Miniature Relay, RM85-2011-25-5012
SKU: RM85-2011-25-5012
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM85 Miniature relays:
Relays designed for continuous operation. CTI 250. Reinforced insulation. For PCB and plug-in sockets. AC and DC coils, insulation class F: 155 °C. Available special versions: in transparent cover with the increased dielectric strength of the contact clearance. Compliance with standards: EN 60730-1, EN 60335-1, EN 45545-2. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM85-2011-25-5012, 1 CO. Contact material: AgNi. Voltage coil 12 V AC. Rated load AC1 16 A / 250 V AC. Mounting: for PCB and sockets. Cover protection category IP 40.
• For PCB and plug-in sockets
• Cover protection category IP 40 or IP 67 EN 60529
• Number and type of contacts 1 CO, 1 NO
• Contact material AgNi, AgNi/Au hard gold plating, AgSnO2
• Rated / max. switching voltage AC 250 V / 400 V
• Min. switching voltage 5 V AgNi, 5 V AgNi/Au hard gold plating, 10 V AgSnO2
• Rated load (capacity) AC1 16 A / 250 V AC
• Rated load (capacity) AC15 3 A / 120 V, 1,5 A / 240 V (B300)
• Rated load (capacity) DC1 16 A / 24 V DC
• Rated load (capacity) DC13 0,22 A / 120, V 0,1 A / 250 V (R300)
• Motor load acc. to UL 508 1/2 HP 240 V AC, 4,9 FLA, single-phase motor
• Motor load AC3 acc. to IEC 60947-4-1, 0,5 kW 240 V AC, single-phase motor
• Min. switching current 5 mA AgNi, 2 mA AgNi/Au hard gold plating, 10 mA AgSnO2
• Max. make current 30 A AgSnO2
• Rated current 16 A
• Max. breaking capacity AC1 4 000 VA
• Min. breaking capacity 0,3 W AgNi, 0,05 W AgNi/Au hard gold plating, 1 W AgSnO2
• Contact resistance ≤ 100 mΩ
