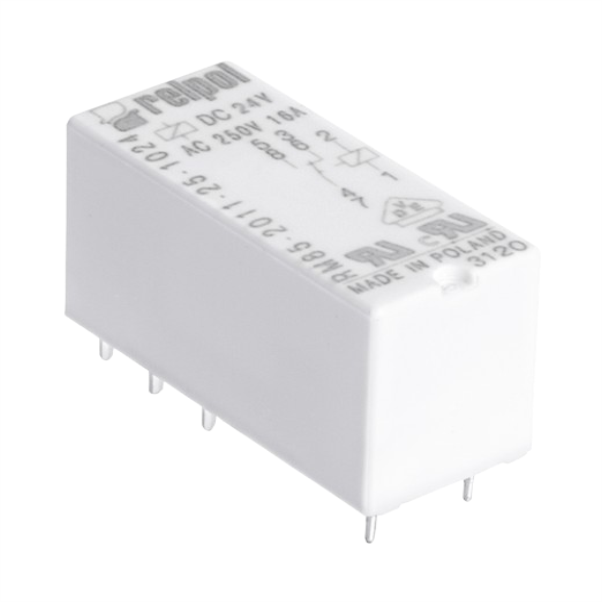

RM85, Miniature Relay, RM85-5021-25-1110
SKU: RM85-5021-25-1110
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM85 Inrush Miniature relays:
Relays designed for continuous operation. CTI 250. Reinforced insulation. For PCB and plug-in sockets. DC coils, insulation class F: 155 °C. Applications: for motor operation control, lighting, electromagnetic valves, and many other applications. Compliance with standards: EN 60730-1, EN 60335-1. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Inrush Miniature relays
• RM85-5021-25-1110 inrush - resistance to inrush current 80 A (20 ms), 1 NO. Contact material: AgSnO2 - solid contacts. Voltage coil 110 V DC. Rated load AC1 16 A / 250 V AC. Mounting: for PCB and sockets. Cover protection category IP 40.
• For PCB and plug-in sockets
• Cover protection category IP 40 EN 60529
• Number and type of contacts 1 NO
• Contact material AgSnO2
• Rated / max. switching voltage AC 250 V / 400 V
• Min. switching voltage 10 V
• Rated load (capacity) AC1 16 A / 250 V AC
• Rated load (capacity) AC15 3 A / 120 V, 1,5 A / 240 V (B300)
• Rated load (capacity) DC1 16 A / 24 V DC
• Rated load (capacity) DC13 0,22 A / 120 V, 0,1 A / 250 V (R300)
• Motor load acc. to UL 508 1 HP 240 V AC, 8 FLA, single-phase motor
• Motor load AC3 acc. to IEC 60947-4-1, 0,75 kW 240 V AC, single-phase motor
• Min. switching current 10 mA
• Max. inrush current 80 A 20 ms
• Rated current 16 A
• Max. breaking capacity AC1 4 000 VA
• Min. breaking capacity 1 W
• Contact resistance ≤ 100 mΩ
