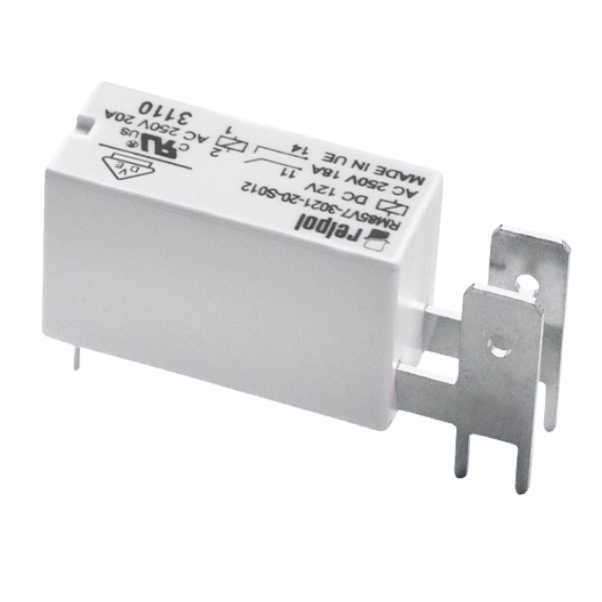

RM85, Miniature Relay, RM85V7-3021-20-S012
SKU: RM85V7-3021-20-S012
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
RM85 Faston Miniature relays:
Relays designed for continuous operation. Coil terminals for PCB, contacts terminals for PCB and flat insert connectors - faston 250 (6,3 x 0,8 mm), faston arrangement: vertical version (V) and horizontal version (H). Ambient temperature up to 105 °C. CTI 250. Reinforced insulation. DC coils - sensitive, insulation class F: 155 °C. Applications: for control of operation of heating elements and motors of household equipment and catering industry devices, for control of electromagnetic valves, in many other applications. Compliance with standards: EN 60730-1, EN 60335-1. Recognitions, certifications, directives: RoHS
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
• Miniature relays
• RM85V7-3021-20-S012, 1 NO. Contact material: AgSnO2. Voltage coil 12 V DC sensitive coil. Rated load AC1 20 A / 250 V AC. Mounting: for PCB and flat insert connectors - faston 250 (6,3 x 0,8 mm), faston arrangement: vertical version (V). Cover protection category IP 40.
• For direct PCB mounting, connection of load with flat insert connectors - faston 250 (6,3 x 0,8 mm).
• Cover protection category IP 40 EN 60529
• Number and type of contacts 1 NO
• Contact material AgSnO2
• Rated / max. switching voltage AC 250 V / 400 V
• Min. switching voltage 10 V
• Rated load (capacity) AC1 20 A / 250 V AC
• Rated load (capacity) AC15 3 A / 120 V, 1,5 A / 240 V (B300)
• Rated load (capacity) DC1 20 A / 24 V DC
• Rated load (capacity) DC13 0,22 A / 120 V, 0,1 A / 250 V (R300)
• Motor load acc. to UL 508 1/2 HP 240 V AC, 4,9 FLA, single-phase motor
• Motor load AC3 acc. to IEC 60947-4-1, 0,5 kW 240 V AC, single-phase motor
• Min. switching current 10 mA
• Max. make current 30 A
• Rated current 20 A
• Max. breaking capacity AC1 5 000 VA
• Min. breaking capacity 1 W
• Contact resistance ≤ 100 mΩ, 100 mA, 24 V
