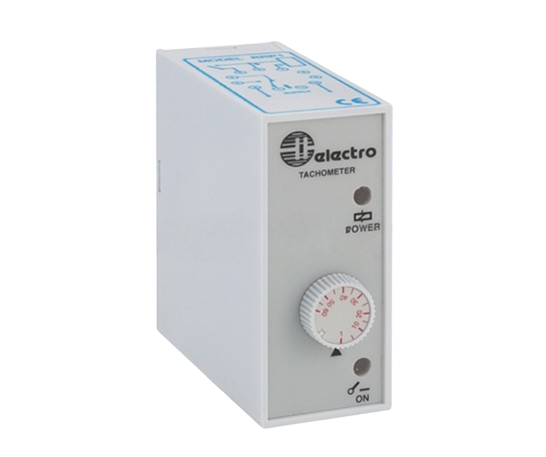

TACHOMETER RELAY 230VAC
SKU: RRP1230A
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Relay tachometer:
Installing the Electro 11 pin plug-in series of control and timing devices is simple and straightforward since they are designed to fit into a conventional 11 pin base.
Multifunction tachometer relay with four configurable speeds that is microprocessor based.
The device interfaces directly with a Namur two wire proximity sensor or limit switch and has the option to operate at OVER or UNDER speeds.
Buy currently uses Select Automation shop pricing and checkout.
Features:
Fail-safe mechanism.
Eight functions that can be chosen.
SPDT output relay with 10A current.
Microprocessor-driven.
Time settings that are customizable on the front face.
35.5mm DIN rail mountable modular device.
Time intervals configurable from 0.3 seconds to 60 hours.
LED power supply and relay indication.
Adjustable function settings and time range on the front face.
Over/under speed:
CONTACT: 10A SPDT
SELECTABLE SPEEDS (RPM): 1-10, 10-100, 100-1000,1000-10000
RATED VOLTAGE: 250V
MECHANICAL LIFE: 10x106 cycles
PROTECTION INDEX IP: IP 20
OPERATING TEMPERATURE: -10 to + 50°C
STORAGE TEMPERATURE: -50 to + 85°C
DIMENSIONS (MM): (H) 92 x (W) 36 x (D) 64
