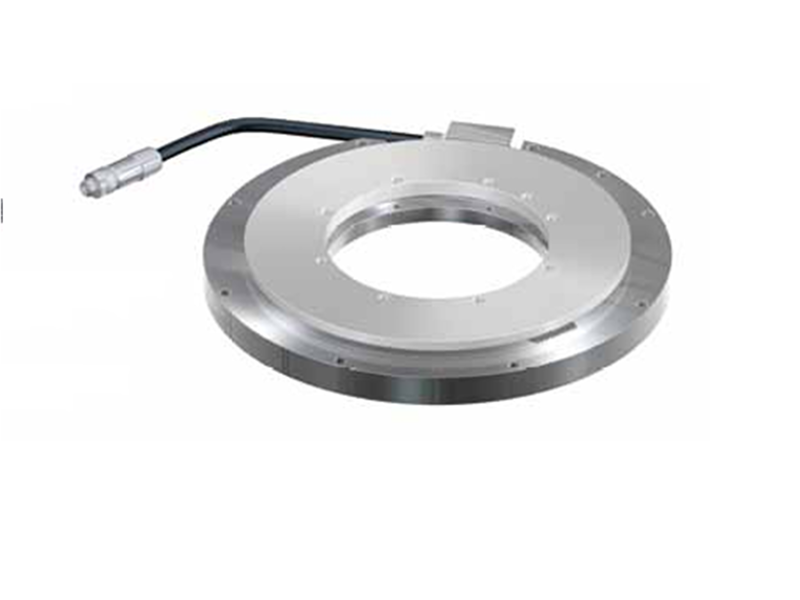

Magnescale Absolute Angle Encoder (Exposed Type RS97e)
SKU: RS97-1024E
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Magnescale Absolute Angle Encoder (Exposed Type RS97e):
96mm diameter through-hole allows for freedom in design and mounting.
Magnetic system permits usage even in settings with condensation, grease, and other unfavourable conditions.
Enables direct communication utilizing the protocol of each supporting manufacturer without the need for an amplifier.
The impact of axial runout is lessened by the dual head arrangement.
Buy currently uses Select Automation shop pricing and checkout.
Exposed type RS97-1024E:
Output signal: Absolute serial bidirectional signal Compliant with EIA-485 / DRIVE-CLiQ.
Through hole: φ96mm.
Maximum resolution: 23 bit (8,388,608 pulse/ revolution).
Accuracy: ±2.5"
Maximum response speed: 5,000min-1
Protective design grade: IP65
