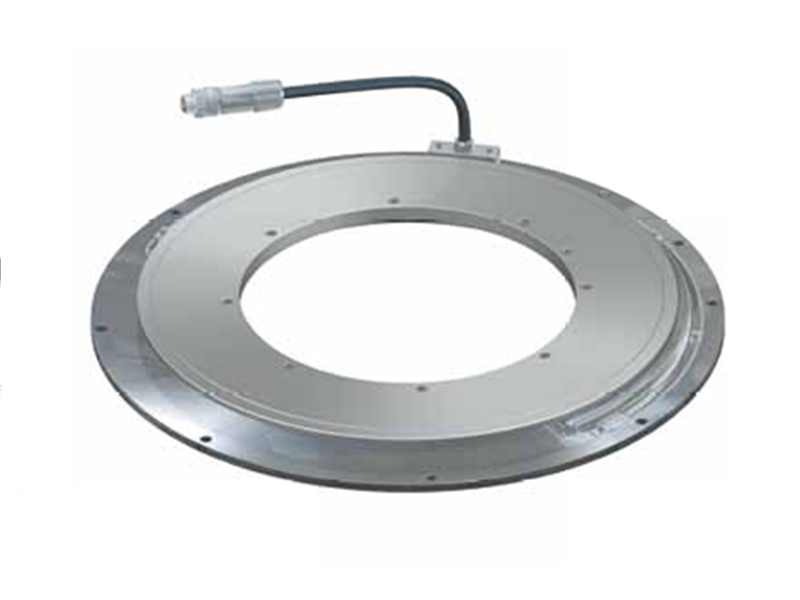

Magnescale Absolute Angle Encoder (Exposed Type RS97n)
SKU: RS97-1024N
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
A succinct explanation The Exposed Type RS97n Absolute Angle Encoder:
Is designed to facilitate direct communication via the manufacturer's protocol, eliminating the need for an amplifier.
Its magnetic system allows for use in unfavourable settings such as those with oil, moisture, and other impurities.
Dual head layout lessens the effect of axial runout.
180mm diameter through-hole gives greater flexibility in design and mounting.
Buy currently uses Select Automation shop pricing and checkout.
Exposed type RS97-1024N:
Output signal: Absolute serial bidirectional signal Compliant with EIA-485 / DRIVE-CLiQ
Through hole: φ180MM
Maximum resolution: 23 bit (8,388,608 pulse/ revolution)
Accuracy: ±2.5"
Maximum response speed: 5,000min-1
Protective design grade: IP65
