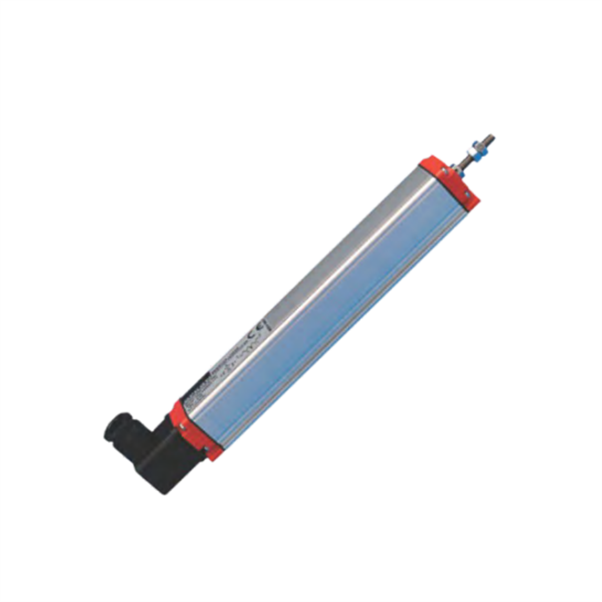

Square Body Potentiometer 350 mm stroke and 10K resistance, RTL350-10K
SKU: RTL350-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
RTL Long Stroke Linear Potentiometers:
Measuring range: 30–1000 mm.
Long mechanical life: 100 million movements.
Excellent repeatability: <0.01mm.
limitless resolution.
5 kOhm: 30–600mm.
10 kOhm: 650–1000mm.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Measurement stroke: 30 to 1000 mm.
Linearity: ±0.05% (>200 mm),±0,1 (130-200 mm), ±0.2% (75–130 mm), and ±0.5% (<75 mm).
Repeatability: <0.01 mm.
Resolution: unlimited.
Resistance: 10 kOhm: 650–1000 mm.
Resistance tolerance: ± 20%.
Load resistance: 100kOhm min.
Cursor current recommendation: <1 µA.
Maximum allowed applied voltage: 28 VDC.
Electrical connections: 4-pin Connector.
Displacement speed: <5m/s.
Mechanical life: 100 million movements.
Case dimensions: 33 mm x 33 mm.
Case material: Anodized aluminium.
Rod material: Stainless steel.
Rod diameter: ø6 mm
Mechanical fixings: Variable brackets.
IP degree: IP65.
Operating temperature range: -20°C to +80°C.
Storage temperature range: -30°C to +90°C.
