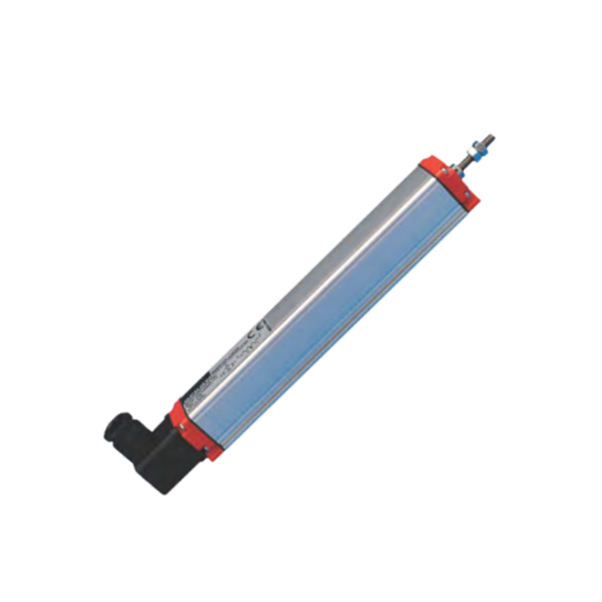

Square Body Potentiometer 700 mm stroke and 10K resistance
SKU: RTL700-10K
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Pricing available on request
Description:
A high-precision linear potentiometer made for precise position measurement in industrial settings is the Opkon RTL700-10K.
Because of its sturdy square body design, this model is appropriate for settings where dependability and longevity are crucial.
It offers accurate and reliable performance across its whole range with a 700 mm stroke length and a 10 k Ohm resistance.
The potentiometer provides a proportionate output in relation to the wiper's position by working based on a voltage divider.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Model: RTL700-10K.
Measurement Stroke: 700 mm.
Resistance: 10 k Ohm.
Body Dimensions: 33 mm x 33 mm.
Linearity: ±0.05%.
Repeatability: <0.01 mm.
Resolution: Infinite.
Power Supply Voltage Range: 5-48 V DC.
Operating Temperature: -40°C to +85°C.
Storage Temperature: -30°C to +90°C.
Protection Level: IP40.
Mechanical Life: 100 million movements.
Case Material: Anodized aluminium.
Rod Material: Stainless steel.
Rod Diameter: Ø5 mm.
Mechanical Fixing: Ball joints on both sides.
Electrical Connections: Connector or 1 m cable output.
