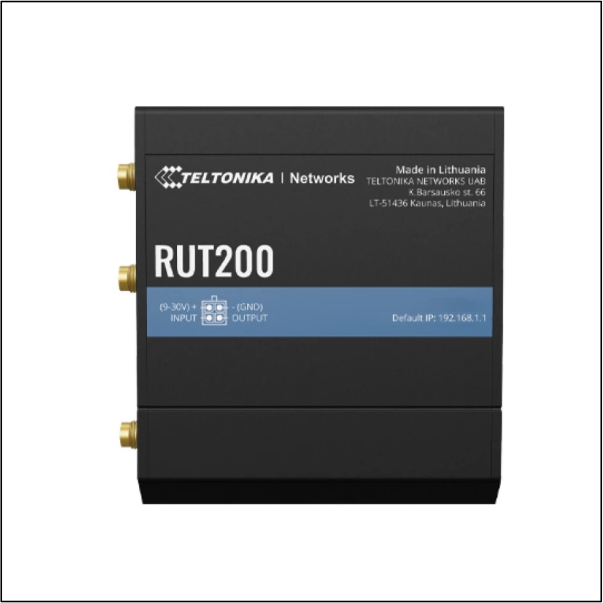

RUT200 LTE Cat 4 Router
SKU: RUT200010000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RUT200 is a compact industrial cellular router that provides reliable, mission-critical connectivity in rigorous conditions common in industries like automation, transportation, and manufacturing.
This model is equipped with 4G LTE, Wi-Fi, and two Ethernet ports, making it ideal for quickly setting up primary and backup connectivity with remote management capabilities.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Mobile - 4G/LTE (Cat 4), 3G, 2G
CPU - Mediatek, 580 MHz, MIPS 24KEc
Storage - 16 MB Flash
Memory - 128 MB RAM
Powering option - 4pin power socket, 9-30 VDC
SIM - 1 x External SIM holder (2FF)
Antenna connectors - 2 x SMA for mobile, 1 x RP-SMA for WiFi
Ethernet - 2 x 10/100 Ethernet ports: 1 x WAN (configurable as LAN), 1 x LAN
Wi-Fi - IEEE 802.11b/g/n, Access point (AP), Station (STA)
Inputs/Outputs - On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Status LEDs - 3 x Connection type, 5 x Signal strength, 2 x Ethernet, 1 x Power
Operating temperature - -40 °C to 75 °C
Housing - Aluminium housing with DIN rail mounting option, plastic panels
Dimensions (W x H x D) - 83 x 25 x 74 mm
Weight - 125 g
