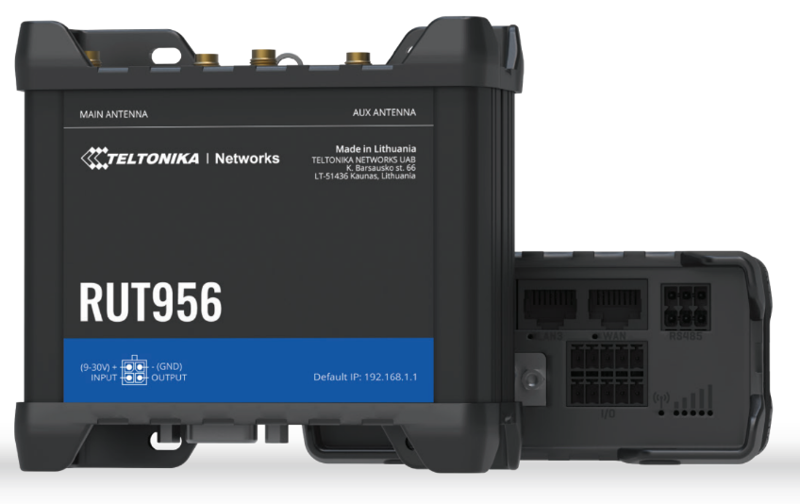

INDUSTRIAL CELLULAR ROUTER RUT956
SKU: RUT956
Price on request
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RUT956 is an industrial router that has GNSS functionality in addition to dual-SIM cellular 4G LTE, Wi-Fi, and cable connectivity options.
Even in the event of a loss of the primary link, automatic WAN failover guarantees solution uptime.
Even legacy equipment can be integrated into the solution ecosystem with the help of serial communication interfaces.
Equipment control, automation, and event notifications are made easier by the powerful RutOS software features available on both digital and analogue inputs and outputs.
loaded with many VPNs, NTRIP, Modbus, SNMP, TR-069, and other cutting-edge industrial software capabilities.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 4G/LTE (Cat 4), 3G, 2G.
CPU: Mediatek, 580 MHz, MIPS 24KEc.
Storage: 16 MB Flash.
Memory: 128 MB RAM.
Powering option: 4-pin industrial power socket, 9 – 30 VDC.
SIM: 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional).
Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS.
Ethernet: 4 x 10/100 RJ45 ports: 1 x WAN (configurable as LAN), 3 x LAN.
Wi-Fi: IEEE 802.11b/g/n, Access point (AP), Station (STA).
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS.
Serial: 1 x RS232, 1 x RS485.
Other: 1 x USB host.
Status LEDs: 1 x Bi-Colour connection type, 5 x Signal strength, 4 x Ethernet, 1 x Power.
Operating temperature: -40 °C to 75 °C.
Housing Aluminium housing: with DIN rail mounting option, plastic panels with flat mounting option.
Dimensions (W x H x D): 110 x 50 x 100 mm.
Weight: 287 g.
Inputs/Outputs:
On 4-pin socket: 1 x Digital input, 1 x Digital open collector output.
On 10-pin socket: 1 x Isolated digital input, 1 x Digital dry input, 1 x Analog input, 1 x Isolated open collector output (requires external voltage), 1 x Relay output (non-latching).
