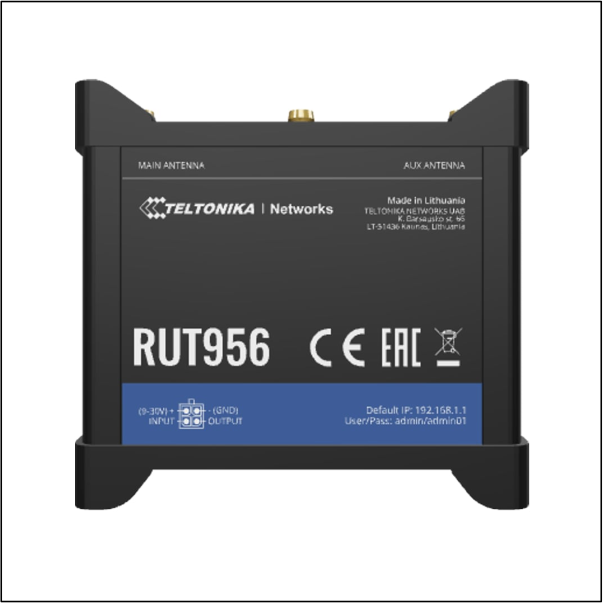

RUT956 LTE Cat 4 Router
SKU: RUT956200000
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
RUT956 is an industrial router that combines cellular, Wi-Fi, and wired connectivity options with automatic WAN failover and GNSS capabilities.
Serial communication interfaces enable integrating more varied devices into the solution ecosystem, while I/O and advanced RutOS software facilitate equipment control, automation, and event notifications.
Buy currently uses Select Automation shop pricing and checkout.
Technical Data:
Mobile - 4G LTE Cat 4 up to 150 DL/50 UL Mbps; 3G up to 21 DL/5.76 UL Mbps; 2G up to 236.8 DL/236.8 UL kbps
CPU - Mediatek, 580 MHz, MIPS 24KEc
Storage - 16 MB Flash
Memory - 128 MB RAM
Powering option - 4-pin industrial power socket, 9 – 30 VDC
SIM - 2 x SIM slots (Mini SIM - 2FF), 1.8 V/3 V, external SIM holders, eSIM (Optional)
SD Card - Micro SD (internal)
Antenna connectors - 2 x SMA for mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
Ethernet - 4 x 10/100 RJ45 ports: 1 x WAN (configurable as LAN), 3 x LAN
Wi-Fi - IEEE 802.11b/g/n, Access point (AP), Station (STA)
GNSS - GPS, GLONASS, BeiDou, Galileo, QZSS
Inputs/Outputs - On 4-pin socket: 1 x Digital input, 1 x Digital open collector output, On 10-pin socket: 1 x Isolated digital input,
Width: 100 mm
Height: 30 mm
Depth: 85 mm
