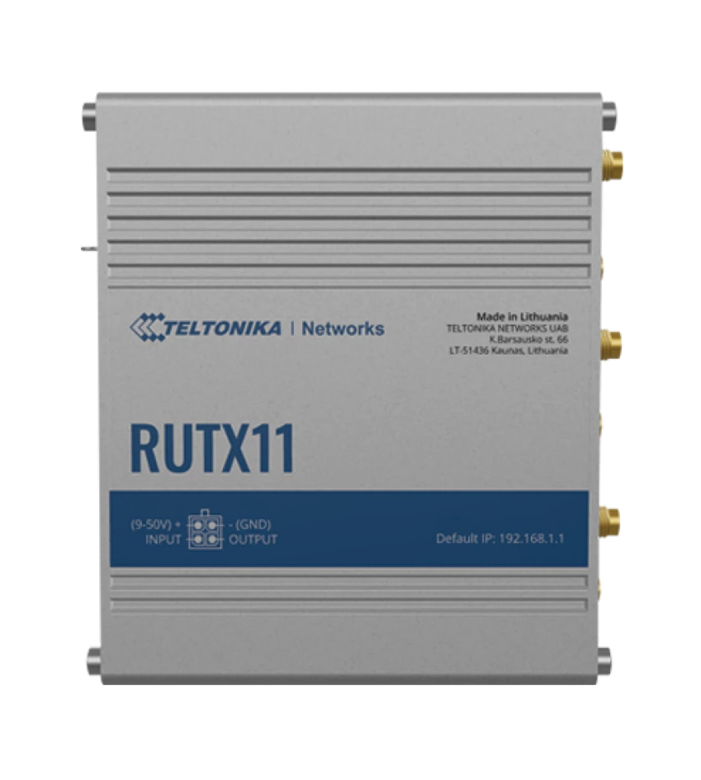

Industrial cellular router 4G/LTE (Cat 6), 3G
SKU: RUTX11
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The RUTX11 is an extremely potent device that has backup WAN, dual-SIM with auto failover, and other SW features.
This device can be utilized in energy-intensive industrial applications where robustness and speed are critical components of the solution, thanks to its extensive range of internal hardware interfaces.
With auto-failover and a backup WAN, 4G LTE - Cat 6 DL up to 300 Mbps in sync with 4 x 1 Gbit Ethernet ports enables a fluid data transfer experience.
By enabling direct sensor-to-router connections using Bluetooth LE, the total solution ecosystem is reduced.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 4G/LTE (Cat 6), 3G
CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
Storage: 256 MB Flash
Memory: 256 MB RAM
Powering option: 4pin power socket, 9-50 VDC
SIM: 2 x External SIM holders (2FF)
Antenna connectors: 2 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS.
Ethernet 4 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 3 x LAN WiFi IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Bluetooth: 4.0 (Low energy)
Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other: 1 x USB host
Status LEDs: 4 x WAN type, 2 x Connection type, 5 x Signal strength, 2 x WiFi, 8 x Ethernet, 1 x Power
Operating temperature: -40 °C to 75 °C
Housing Aluminium: housing with DIN rail mounting option and grounding capability.
Dimensions (W x H x D): 115 x 44.2 x 95.1 mm
Weight: 456 g
