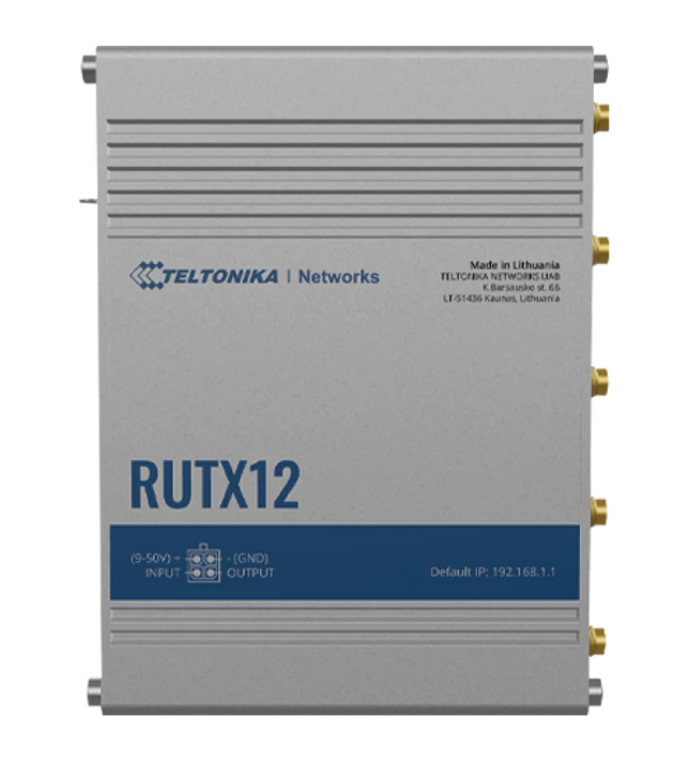

Dual LTE CAT 6 Industrial cellular router 2 X 4G/LTE (CAT6), 3G
SKU: RUTX12
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The strongest Dual LTE Cat 6 router in our lineup is the RUTX12.
With load balancing, two concurrently operating LTE Cat 6 modems can achieve 600 Mbps of speed.
This device is indispensable in situations where losing connectivity is not an option because of its five Gigabit Ethernet connections, Wave-2 802.11ac Dual-Band Wi-Fi, Bluetooth LE, USB interfaces, and dual SIM.
loaded with cutting-edge security capabilities, like GNSS tracking, VPN, IPsec, PPTP, L2TP, and tunnelling.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 2 X 4G/LTE (Cat 6), 3G
CPU: Qualcomm, 4 x ARM Cortex A7, 717 MHz
Storage: 256 MB Flash
Memory: 256 MB RAM
Powering option: 4pin power socket, 9-50 VDC
SIM: 2 x External SIM holders (2FF)
Antenna connectors: 4 x SMA for mobile, 2 x RP-SMA for WiFi, 1 x RP-SMA for Bluetooth, 1 x SMA for GPS.
Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN WiFi IEEE 802.11b/g/n 2.4GHz, IEEE 802.11ac/n/a 5GHz, Access point (AP), Station (STA)
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Bluetooth: 4.0 (Low energy)
Inputs/Outputs: On 4pin socket: 1 x Digital input, 1 x Digital open collector output
Other: 1 x USB host
Status LEDs: 4 x WAN type, 6 x Connection type, 6 x Signal strength, 2 x WiFi, 10 x Ethernet, 1 x Power
Operating temperature: -40 °C to 75 °C
Housing: Aluminium housing with DIN rail mounting option and grounding capability
Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
Weight: 540 g
