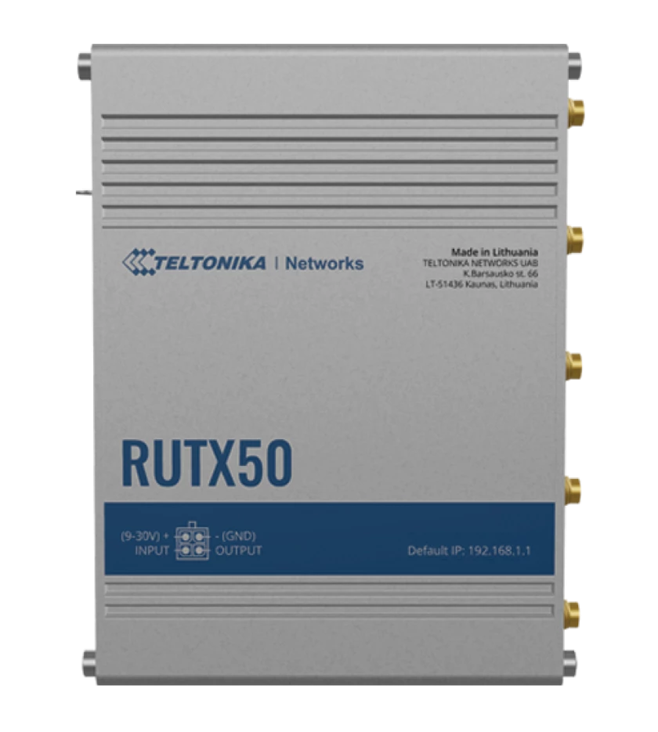

Industrial 5G Router, 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO)
SKU: RUTX50
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
The multi-network industrial router RUTX50 is built for the future and provides 5G mobile connectivity for demanding and fast applications.
Reliable, ultra-low latency data transfer is made possible by 5G dual SIM cellular connectivity, dual-band Wi-Fi, and five Gigabit Ethernet ports combined.
The strength of 5G technology, along with a variety of industrial hardware features and interfaces, guarantees adaptability for upcoming expansions and upgrades.
The RutOS operating system, which is included with the RUTX50, offers sophisticated security features and specialized industrial protocols for a variety of professional application scenarios. It is also compatible with our Remote Management System (RMS), enabling optimal remote management and monitoring of sizable device fleets.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL
CPU: Quad-core ARM Cortex A7, 717 MHz
Flash storage: 256 MB.
RAM: 256 MB.
Powering options: 4-pin power socket, 9-50 VDC
SIM: 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V
Antenna connectors: 4 x SMA for Mobile, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNSS
Ethernet: 5 x 10/100/1000 Ethernet ports: 1 x WAN (configurable as LAN), 4 x LAN
Wi-Fi: 802.11b/g/n/ac Wave 2 (Wi-Fi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
GNSS: GPS, GLONASS, BeiDou, Galileo, QZSS
Wireless mesh/roaming: Wireless mesh (802.11s), fast roaming (802.11r)
Inputs/Outputs: On 4-pin socket: 1 x Digital input, 1 x Digital open collector output
Other: 1 x USB host, 1 x Grounding screw
Status LEDs: 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G Wi-Fi LEDs
Operating temperature: -40 °C to 75 °C
Housing Aluminium: housing, DIN rail (can be mounted on two sides), flat surface placement.
Dimensions (W x H x D): 132 x 44.2 x 95.1 mm
Weight: 533 g
