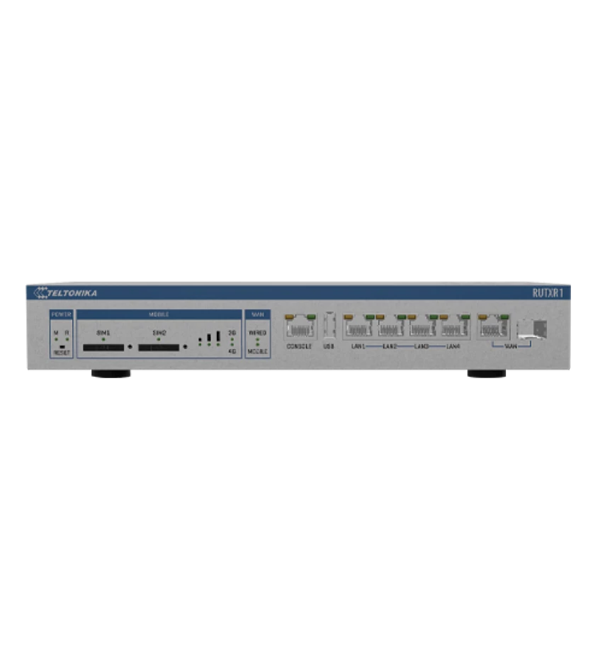

Enterprise rack-mountable SFP/LTE router 4G (LTE)
SKU: RUTXR1
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
Description:
Teltonika Networks' first rack-mountable LTE Cat 6 router has dual-SIM, WAN failover, USB, SFP, and dedicated console connections in addition to redundant power supplies.
Wherever a quick and incredibly dependable connection is required, this feature-rich device running the highly configurable RutOS operating system is ideal.
Buy currently uses Select Automation shop pricing and checkout.
Hardware:
Mobile: 4G (LTE) – Cat 6 DL up to 300 Mbps, UL up to 50Mbps; DC-HSDPA; HSUPA; WCDMA.
CPU: Quad Core ARM Cortex A7 717 MHz CPU.
Memory: 256 MB SPI Flash, 256 MB of DDR3 RAM.
Ethernet: 4 x LAN ports 10/100/1000 Mbps, 1 x WAN port (can be used as LAN) 10/100/1000 Mbps.
SFP: 1 x SFP port for Optical interface.
WiFi: 802.11ac (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO)
Power supply: Dual 9 - 50 VDC, 4 pin DC connectors.
SIM: 2 x external SIM holders.
Status LEDs: 2 x Power, 2 x SIM status, 2 x Mobile connection type, 3 x Mobile connection signal strength LEDs, 2 x WAN connection type, 4 x Ethernet status Connectors 2 x 4 pin DC, 5 x Ethernet, 1 x SFP, 2 x SMA for LTE, 2 x RP-SMA for WiFi, 1 x RJ45 console, 1 x USB, Grounding terminal.
Operating temperature: -40 °C to 75 °C.
Housing: Full aluminium Rack Unit housing, 1U height.
Dimensions: 272 mm x 123 mm x 43.66 mm.
