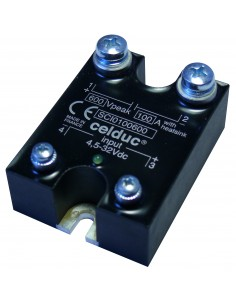

100A 0-600VDC SOLID STATE RELAY
SKU: SCI0100600
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
DC output solid state relay:
SCI series - Integrated reverse diode
IGBT technology - for high DC voltage applications
SERIES: SCI series
SWITCHING CURRENT: 100A
SWITCHING VOLTAGE: 0 - 600 VDC
CONTROL VOLTAGE: 4.5 - 32 VDC
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 58.5 x (W) 45 x (D) 27
Buy currently uses Select Automation shop pricing and checkout.
SCI series - Integrated reverse diode:
Control voltage range: 4.5-32VDC.
Max transient peak Voltage: 600V
Advised max. DC Mains peak voltage: Depends on protection clamping voltage.
Max. Load Current with heatsink: 100ADC.
DC Mains voltage range: Depends on protection clamping voltage.
Load current range: 0 to 100A with heatsink.
In & case / Out Insulation: 4kV
Connections: M3 and M5 round tabs
Control current: 35mADC.
Control current consumption: 25 – 42mADC.
Releasing control voltage: 1VDC
Max. reverse control voltage: 32VDC
Input impedance: Current limitation.
Display: Green LED (indicates the power element is controlled)
Housing: UL94V0
Mounting: 2 screws (M4x12mm)
Protection level: IP00
CE marking
UL, cULUS
