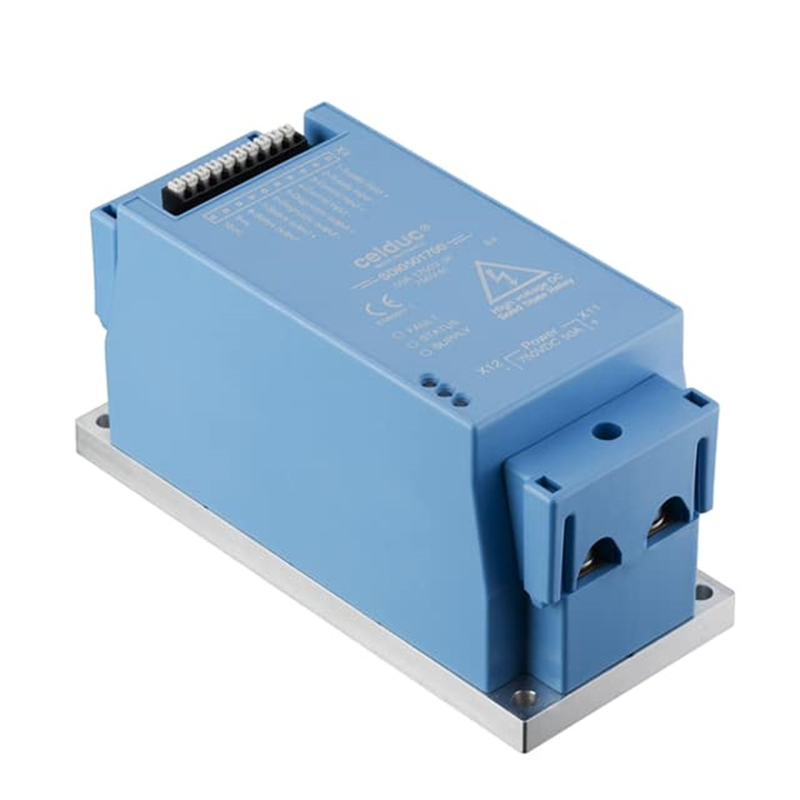

50A 24-940VDC INTEG PROTECT SSR
SKU: SDI0501710
Out of stock
Availability: Out of Stock
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
SDI series - Integrated protection:
IGBT technology is used in applications requiring high DC voltage.
Protection against overvoltage.
Safety against load short circuits.
Protection against overload temperatures.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
SERIES: SDI series
SWITCHING CURRENT: 50A
SWITCHING VOLTAGE: 24 - 940 VAC
PEAK VOLTAGE: 1700V
CONTROL VOLTAGE: 72 - 110 VDC
DESCRIPTION: DC output solid state relay
INDEX PROTECTION IP: IP20
DIMENSIONS (MM): (H) 157 x (W) 68 x (D) 83
Nominal. output voltage: 750VDC.
load current with heatsink: 50ADC.
Supply voltage range: 72-96-110VDC.
Overvoltage protection: Transient voltage suppressor
Overload and shorts-circuits protection: Thermistor.
