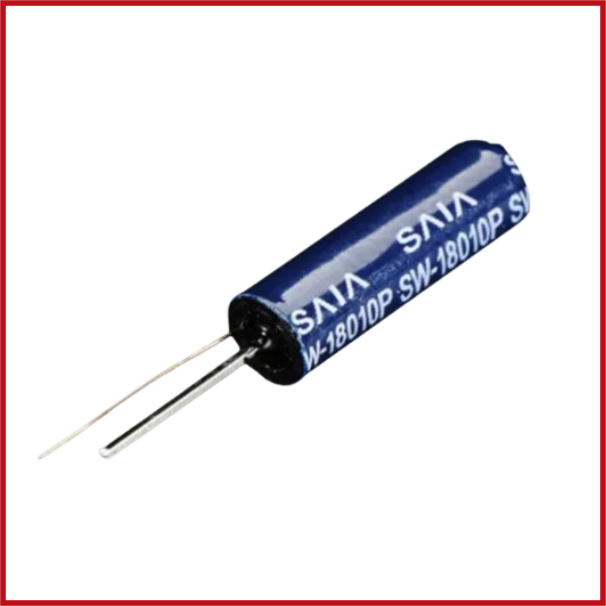

Fast Vibration Sensor Switch 12V
SKU: SEN-0001-H11
Sold by Select Automation
Final price R 27.06
R 23.53 excl. VAT
Availability: In Stock (2 on hand)
Marketplace sellers
Submit a quote request to receive offers from sellers of this product.
Short Description
These spring-vibration switches are high-sensitivity, non-directional vibration-induced trigger switches.
Inside, an extremely soft spring coils around a long metal pin.
When you move the switch, the spring contacts the centre pole.
So, when there is motion, the two pins function as a closed switch.
When everything is still, the switch is open.
Buy currently uses Select Automation shop pricing and checkout.
Specifications:
Maximum Voltage: 12V.
Contact Resistance: <10 ohm.
Contact Time: 2 ms.
Maximum Current: 20mA.
Insulation Resistance: >10M ohm.
Temperature Range: -40 to 80ºC.
Operating lifespan: 100,000 cycles.
Diameter: 5mm/0.2".
Height (w/ pins): 25mm/1".
Height (w/o pins): 15mm/0.6".
Weight: 0.3g.
